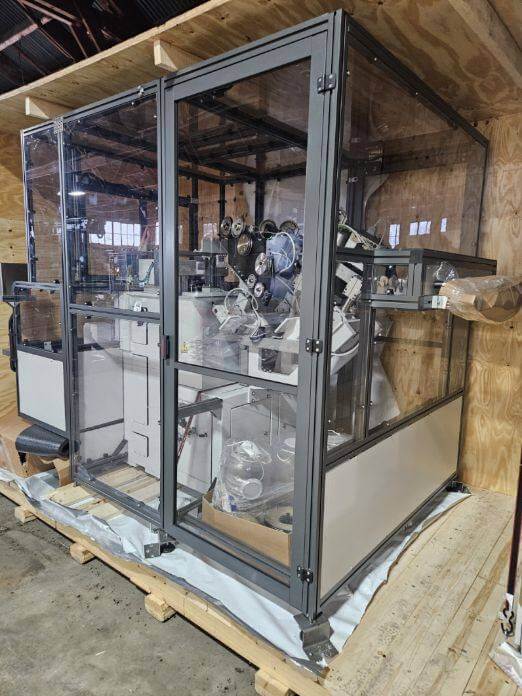

2019 Marsilli CX Winding Machine. Stator Winder
Wire range: 0.2 – 1 mm
Max torque: 3 x 1 mm wire
Strokes: Layering 200 mm, Vertical 80 mm, Lateral 350 mm
Max winding speed: 700 rpm on a 20 mm pole height and 3 wires 0.5 mm
Working Area: 500 mm

Machine Configuration
(3) MT4 Electronic Programmable Tension Devices
Special wire guide bar including (3) wire feed tubes
Din 250 supply spool holders, individual carts, and wire cleaning felts
Set up and programming for one stator specification
