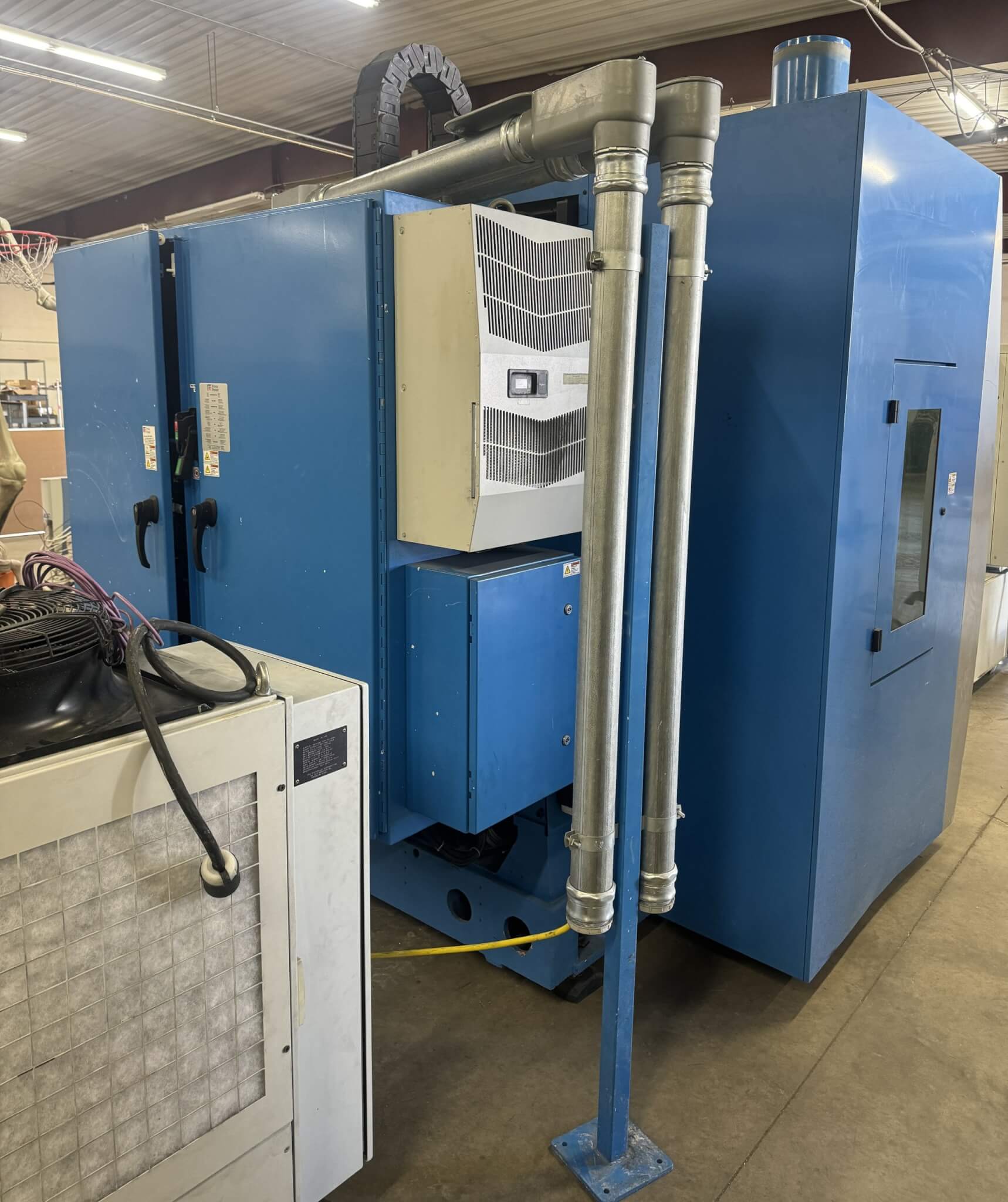

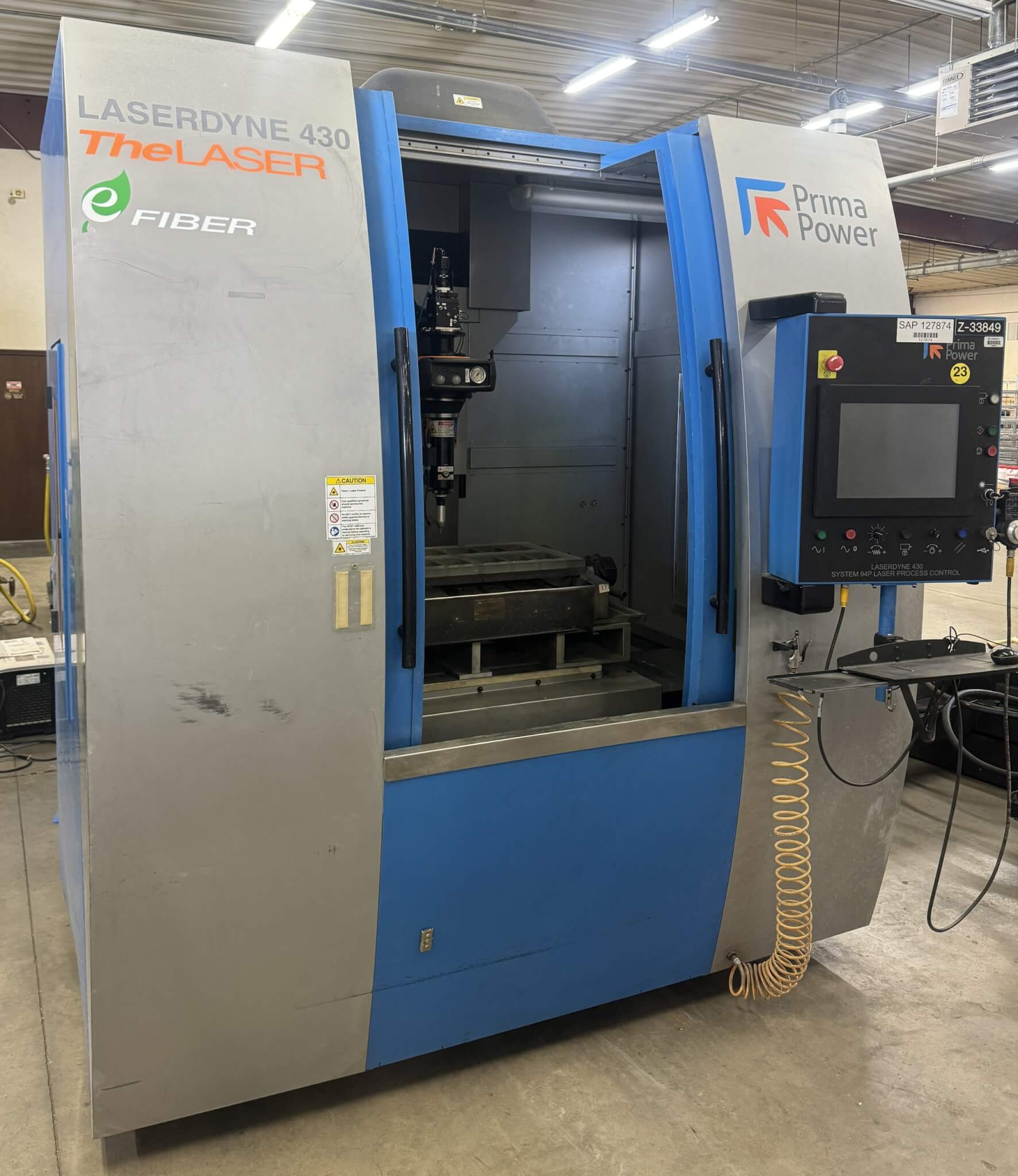

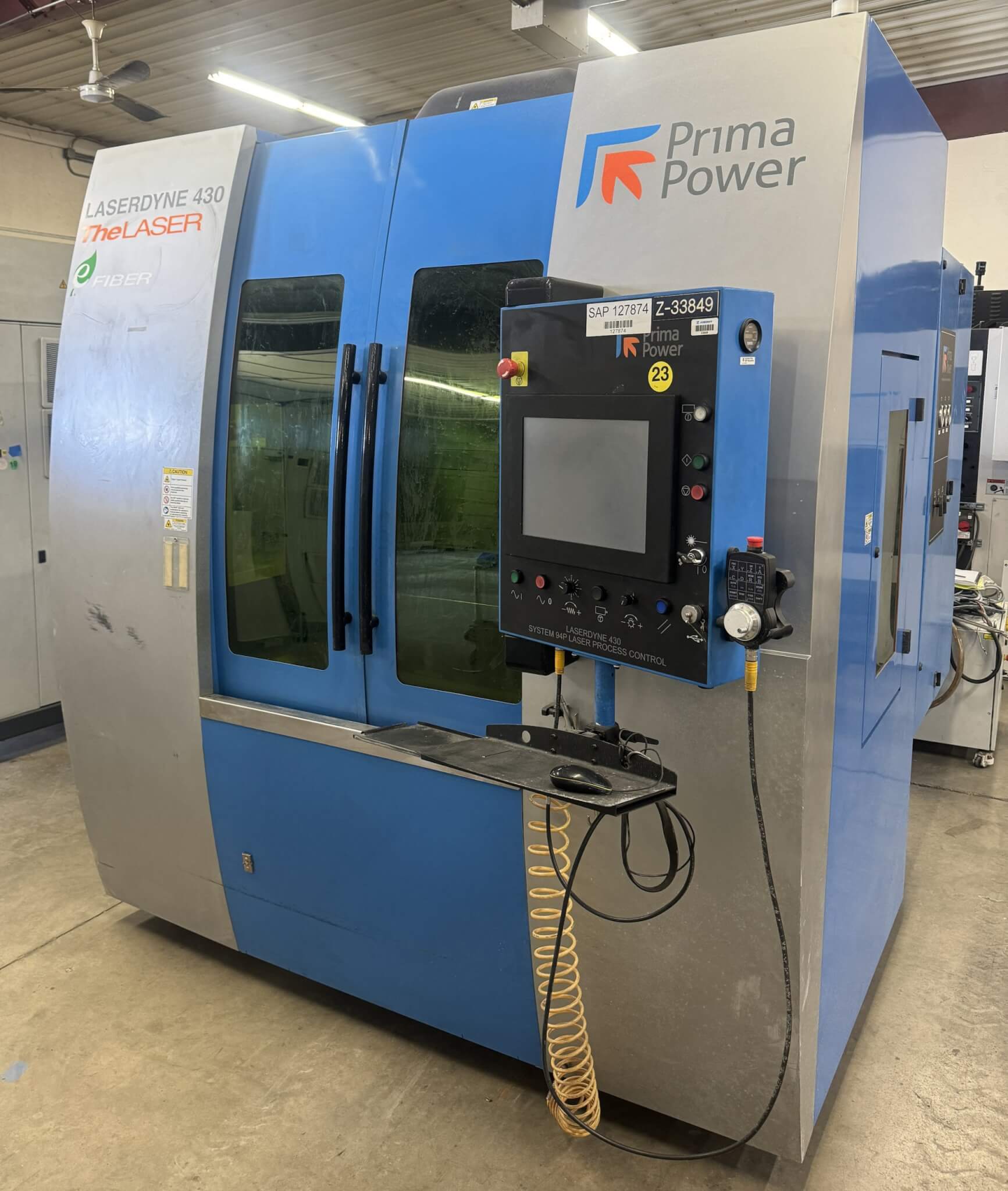

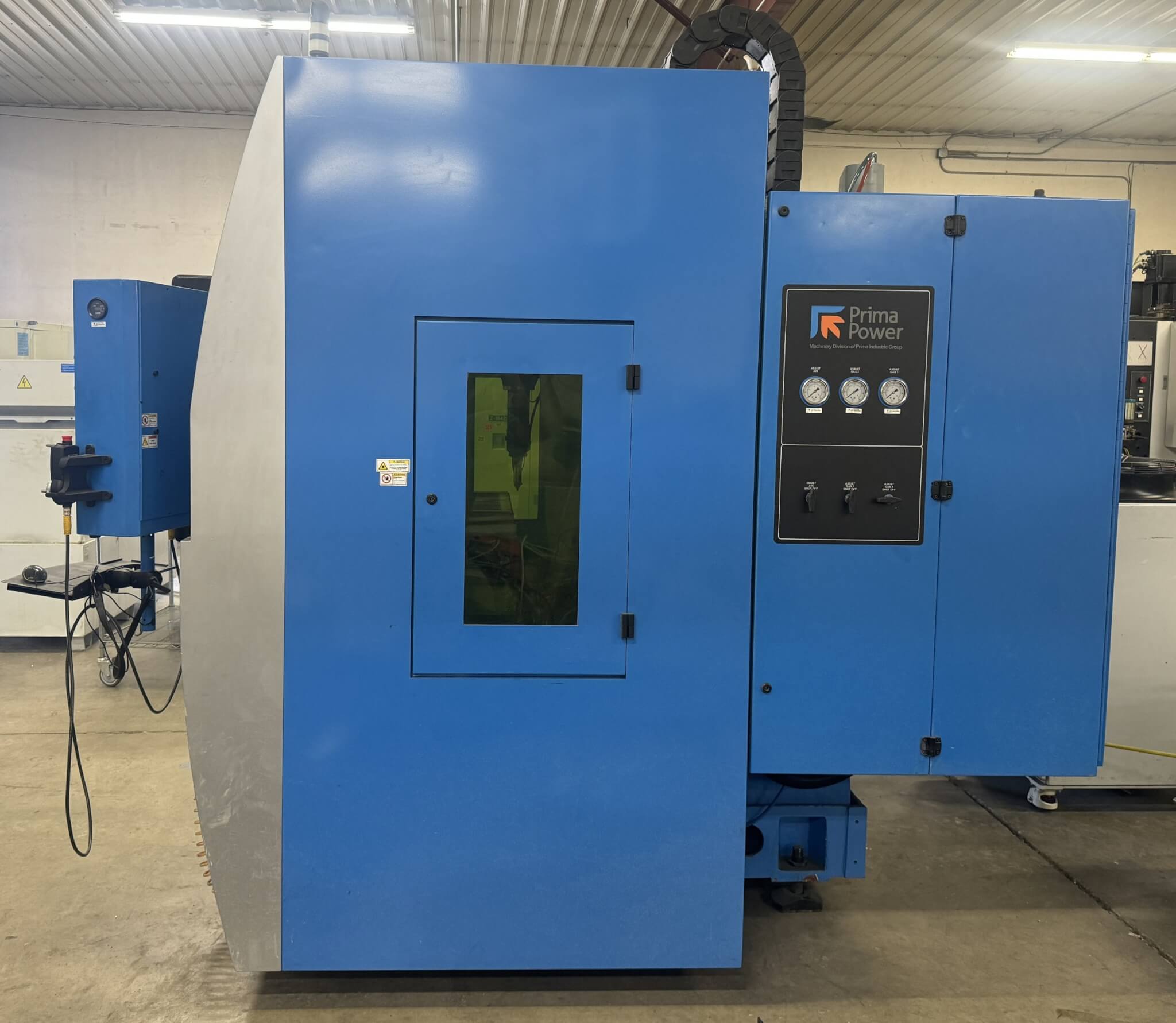

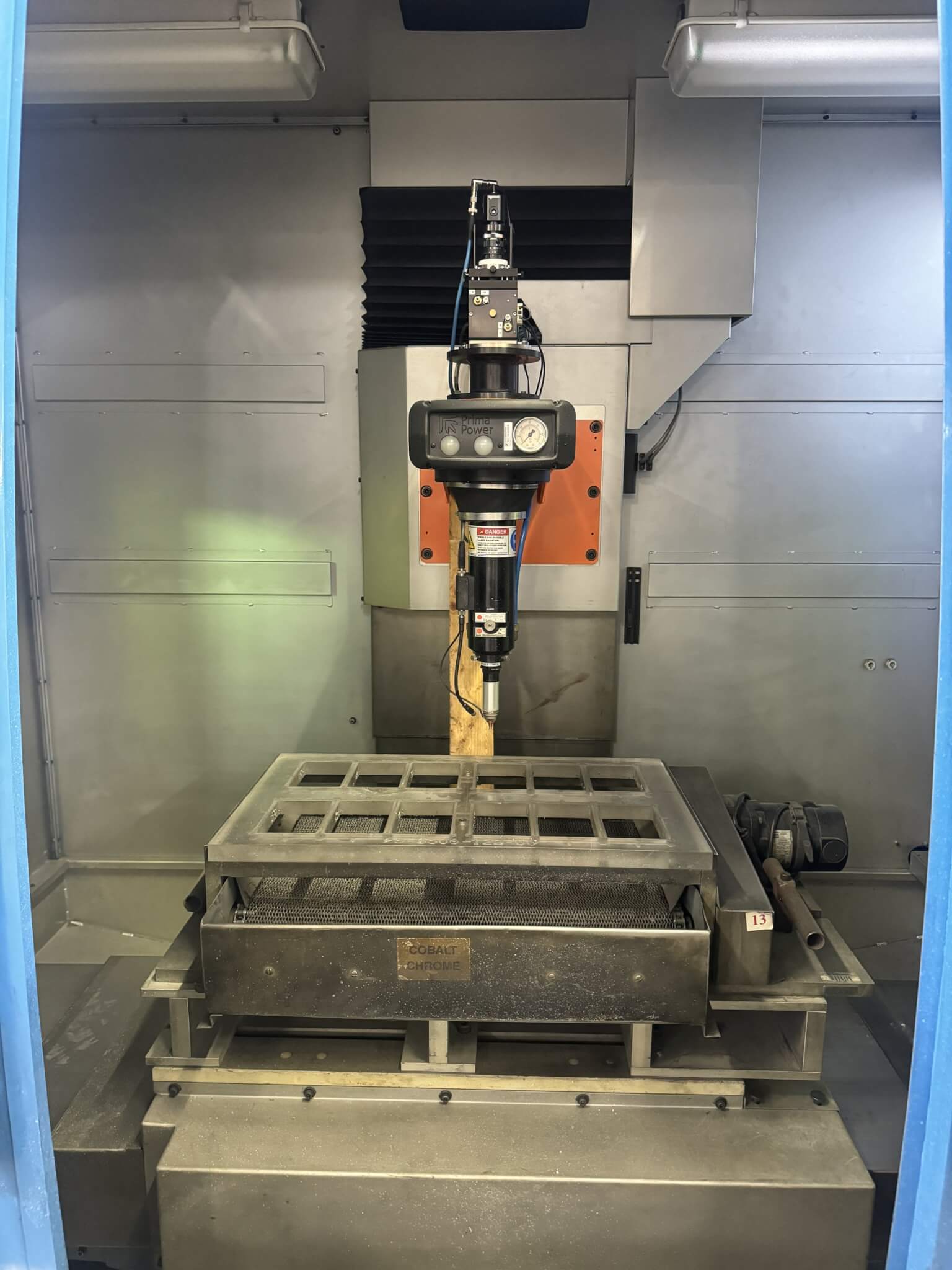

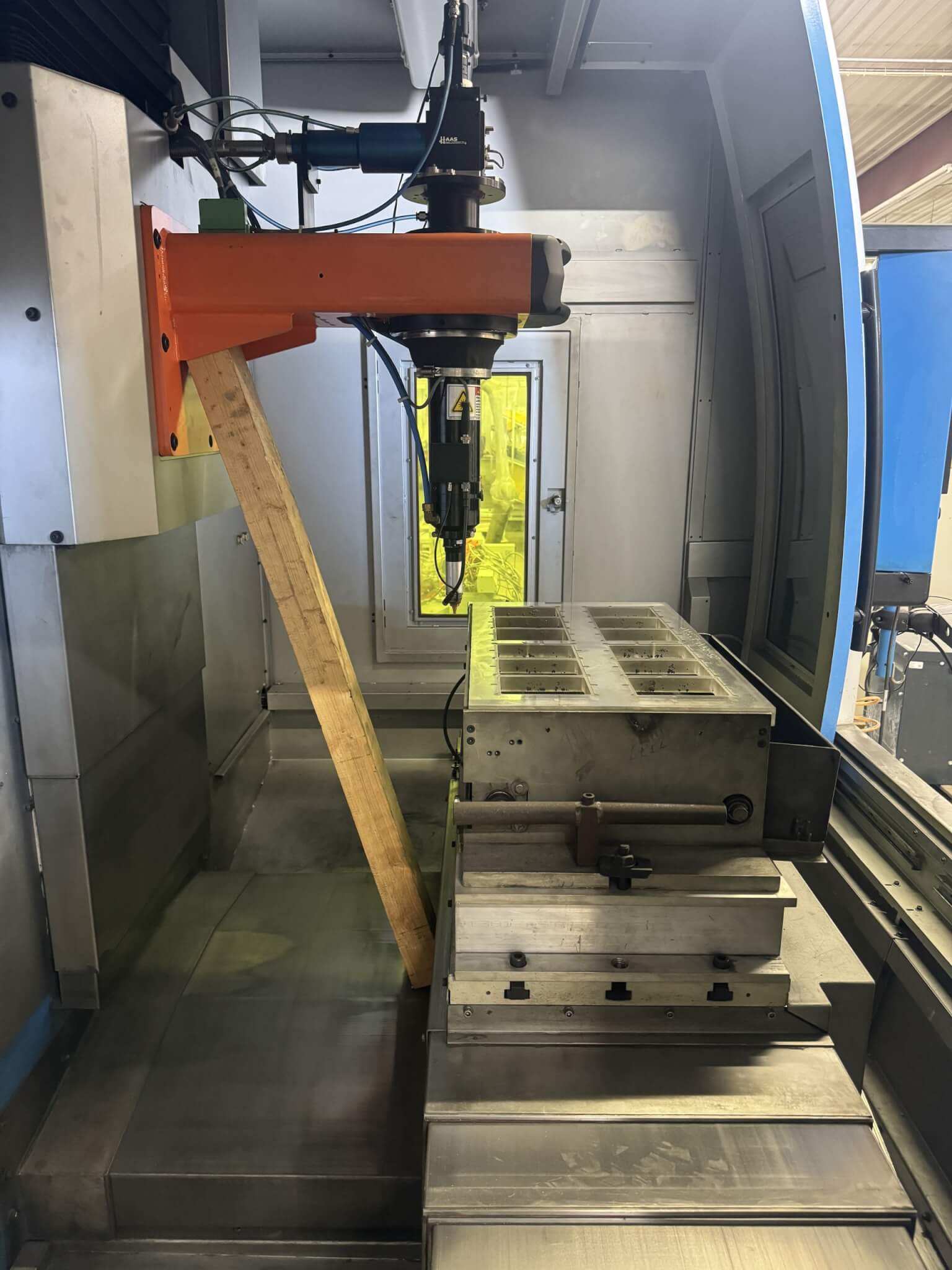

2014 Prima Power Laserdyne 430

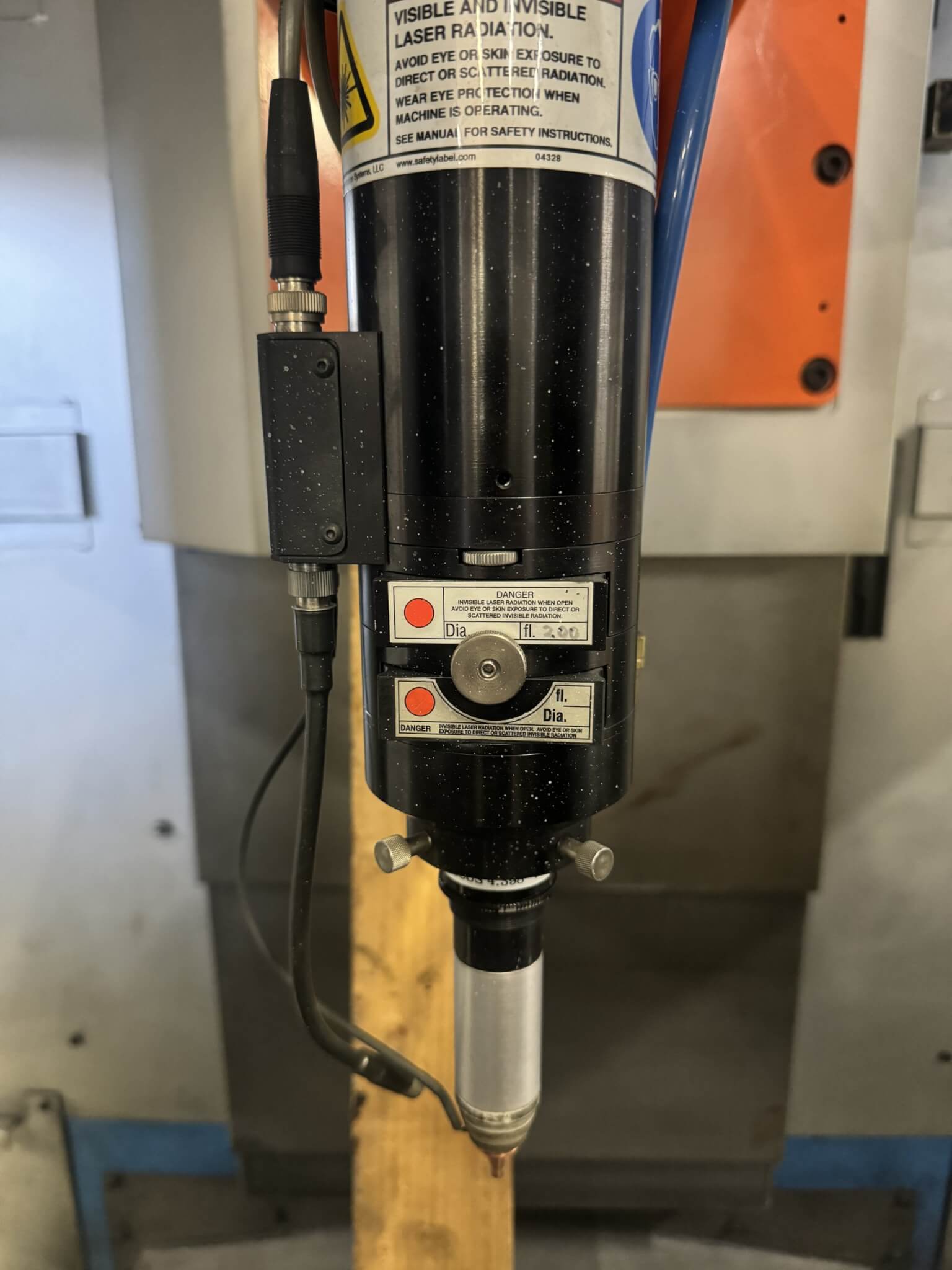

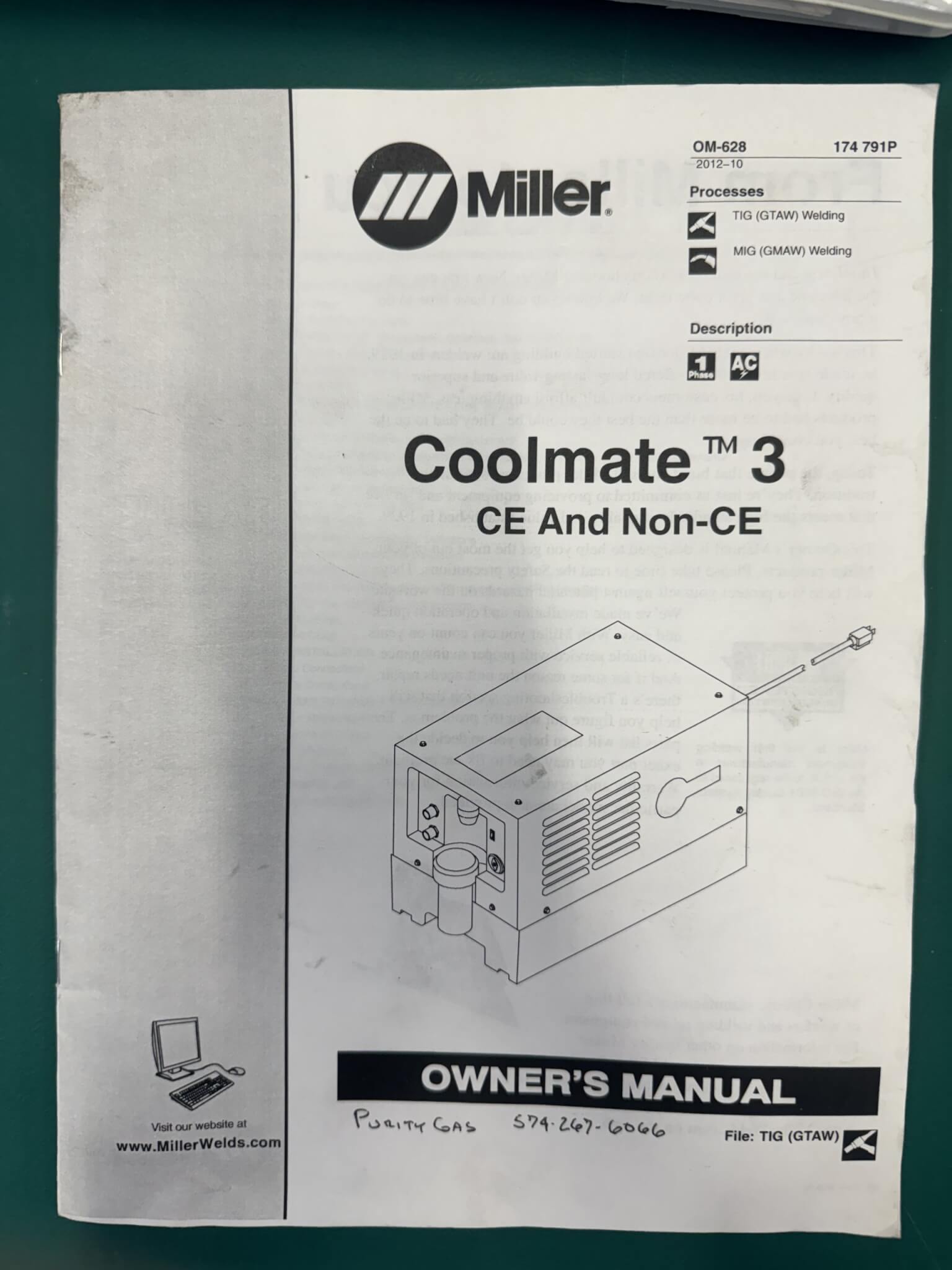

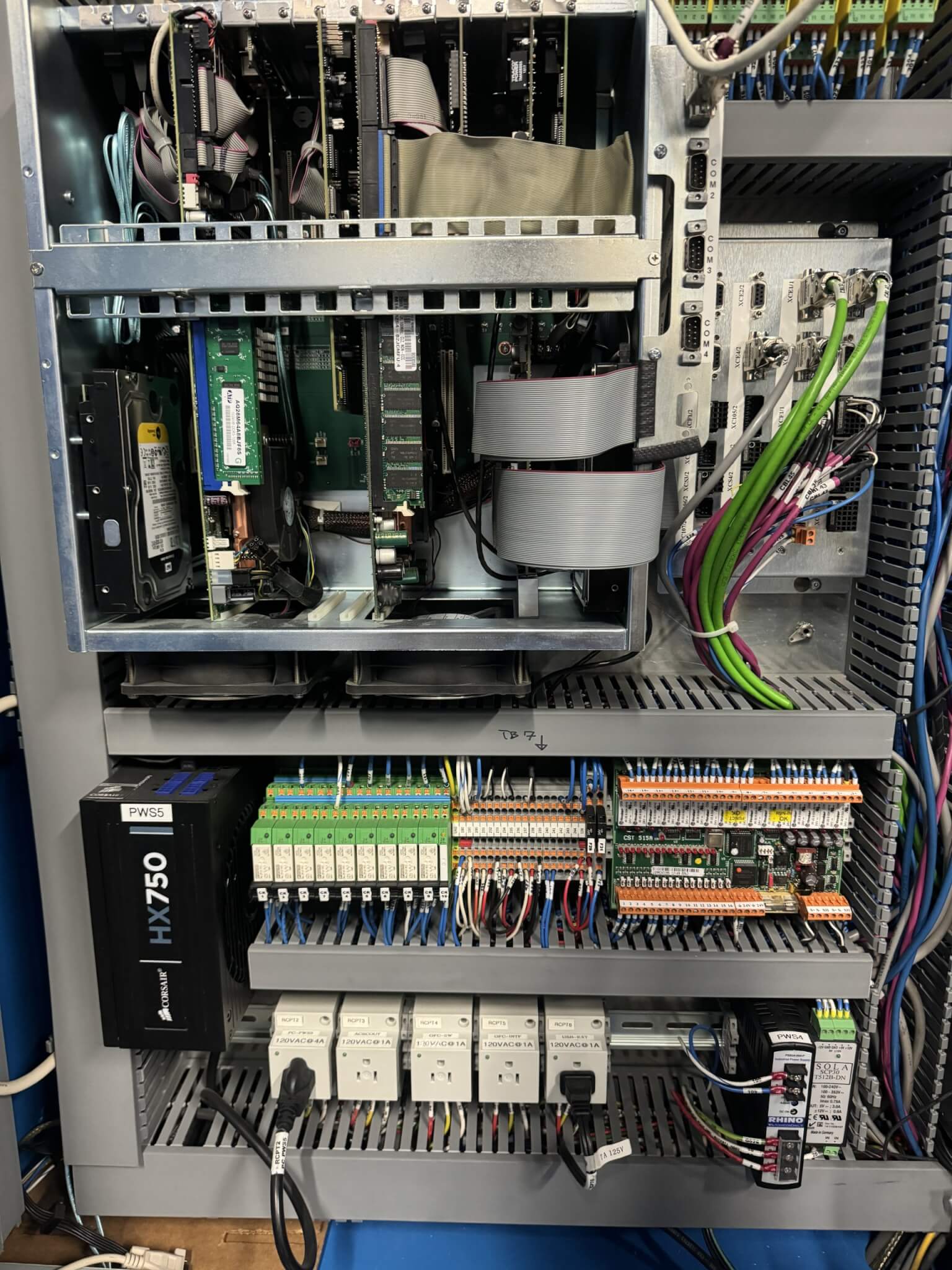

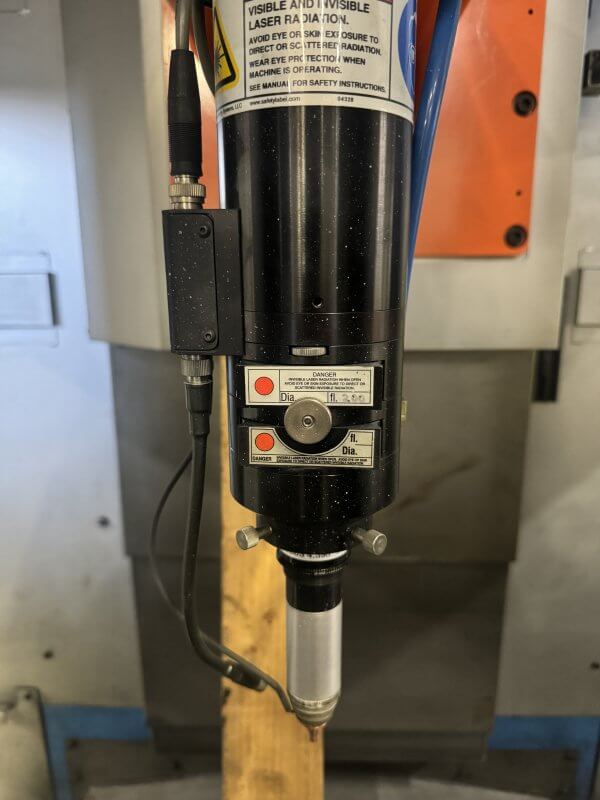

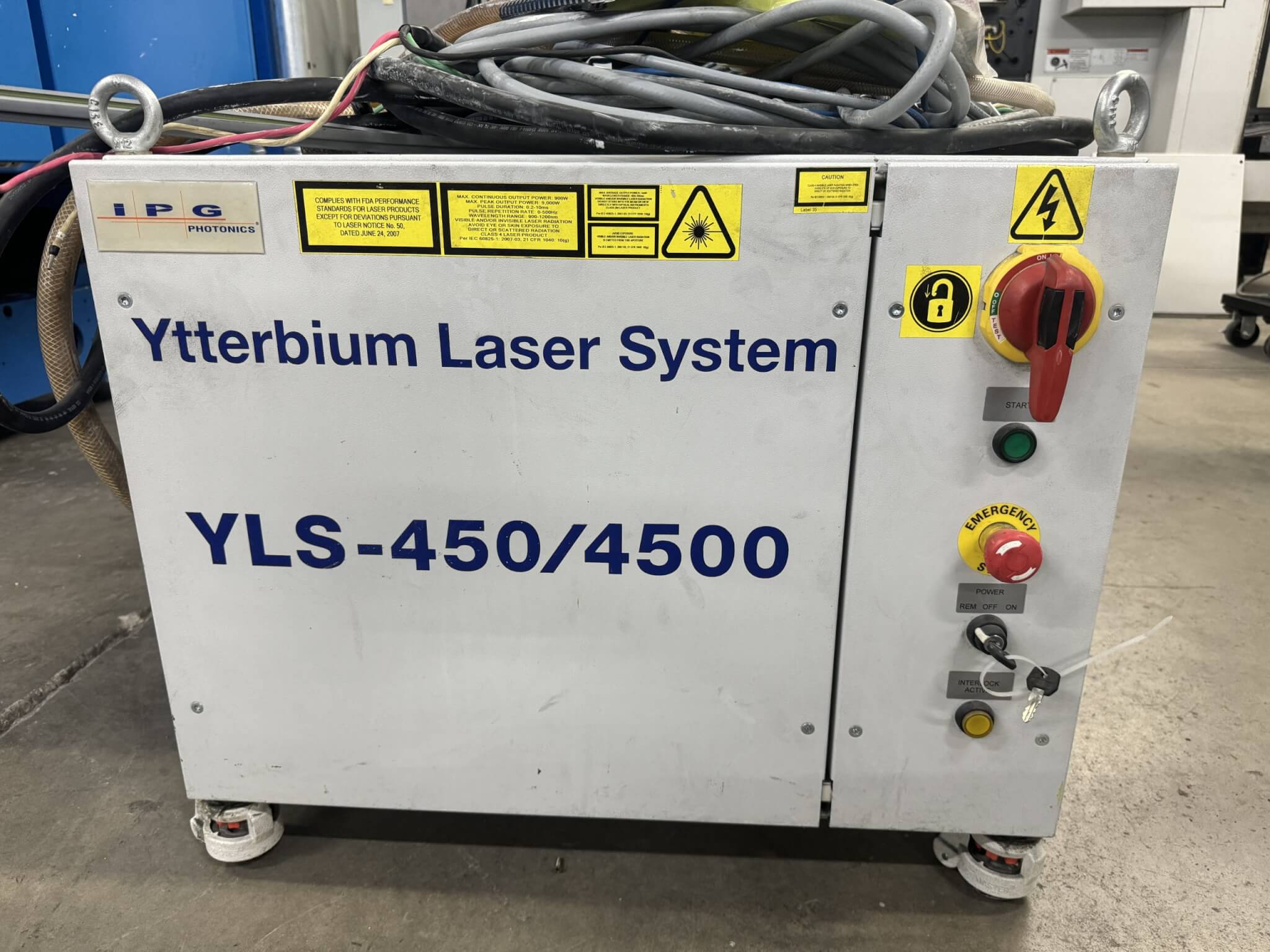

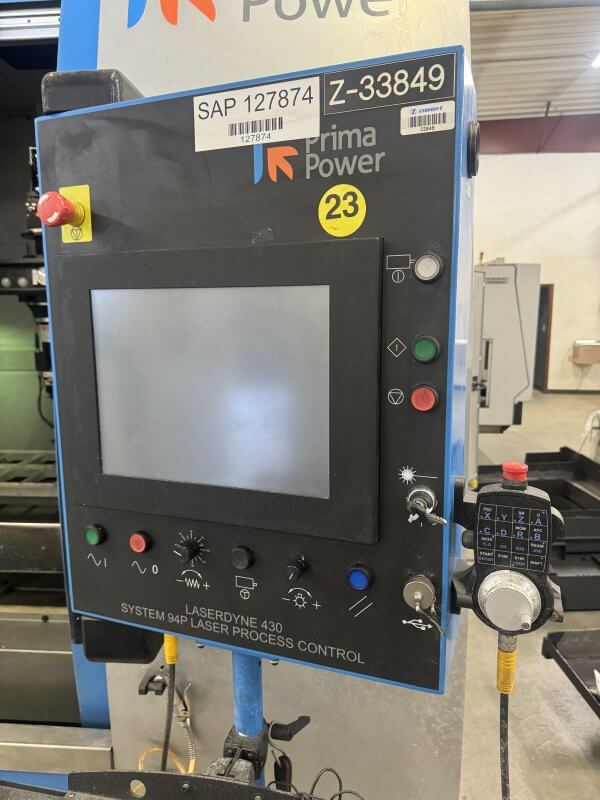

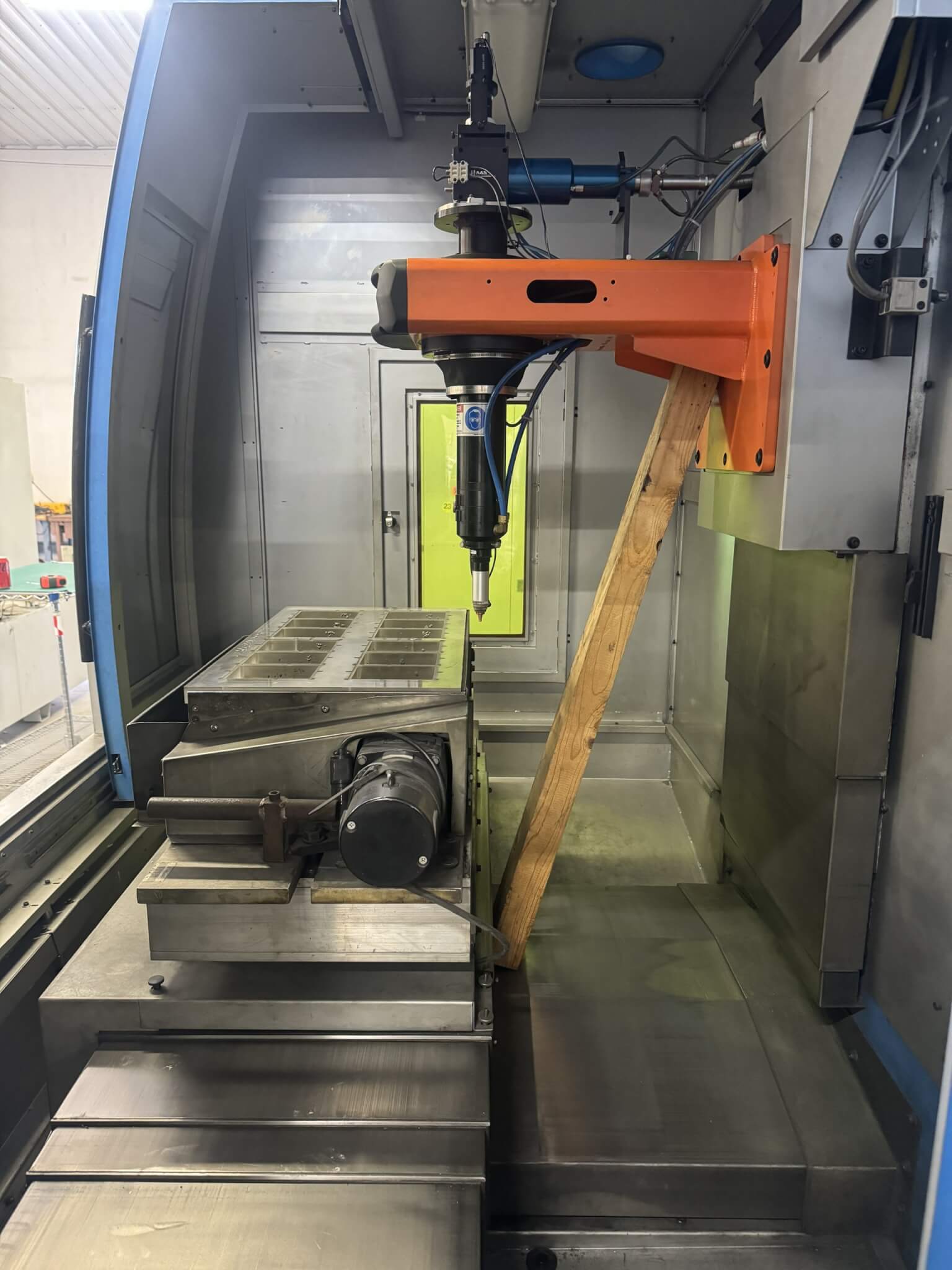

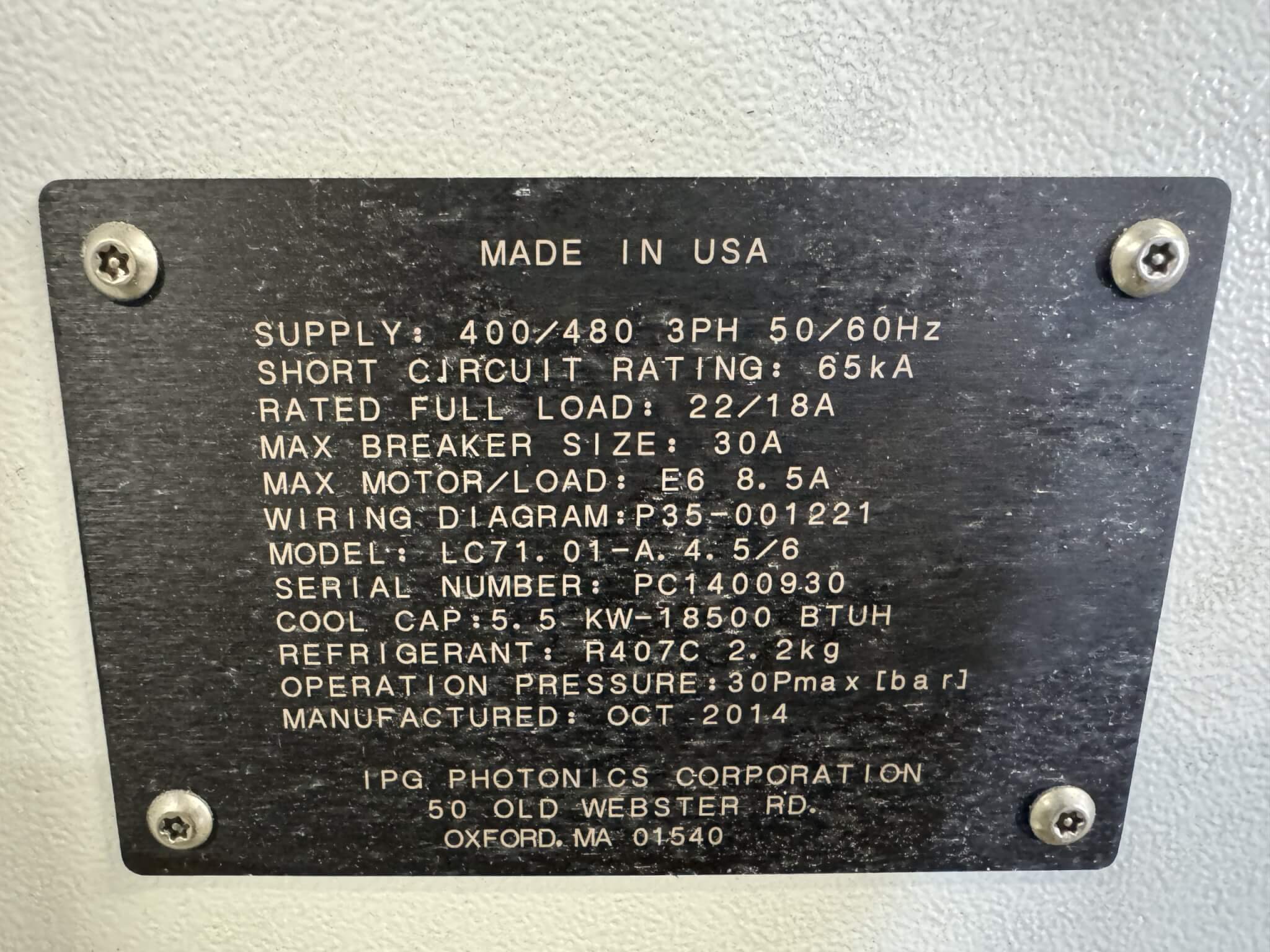

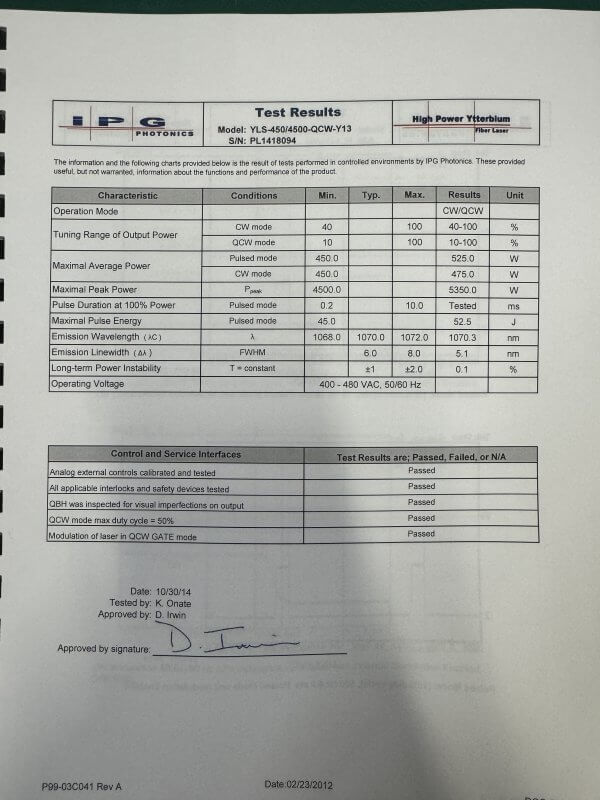

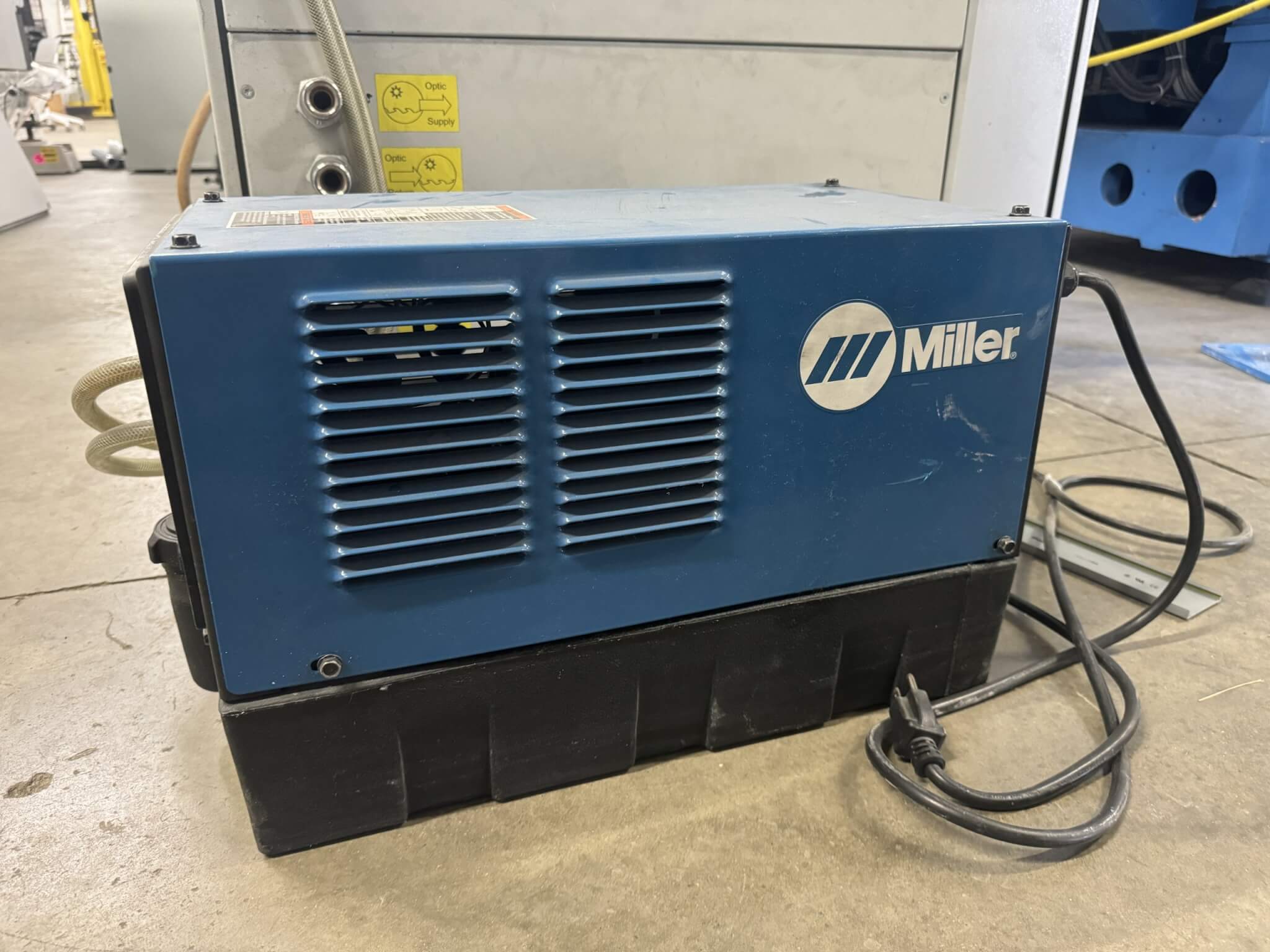

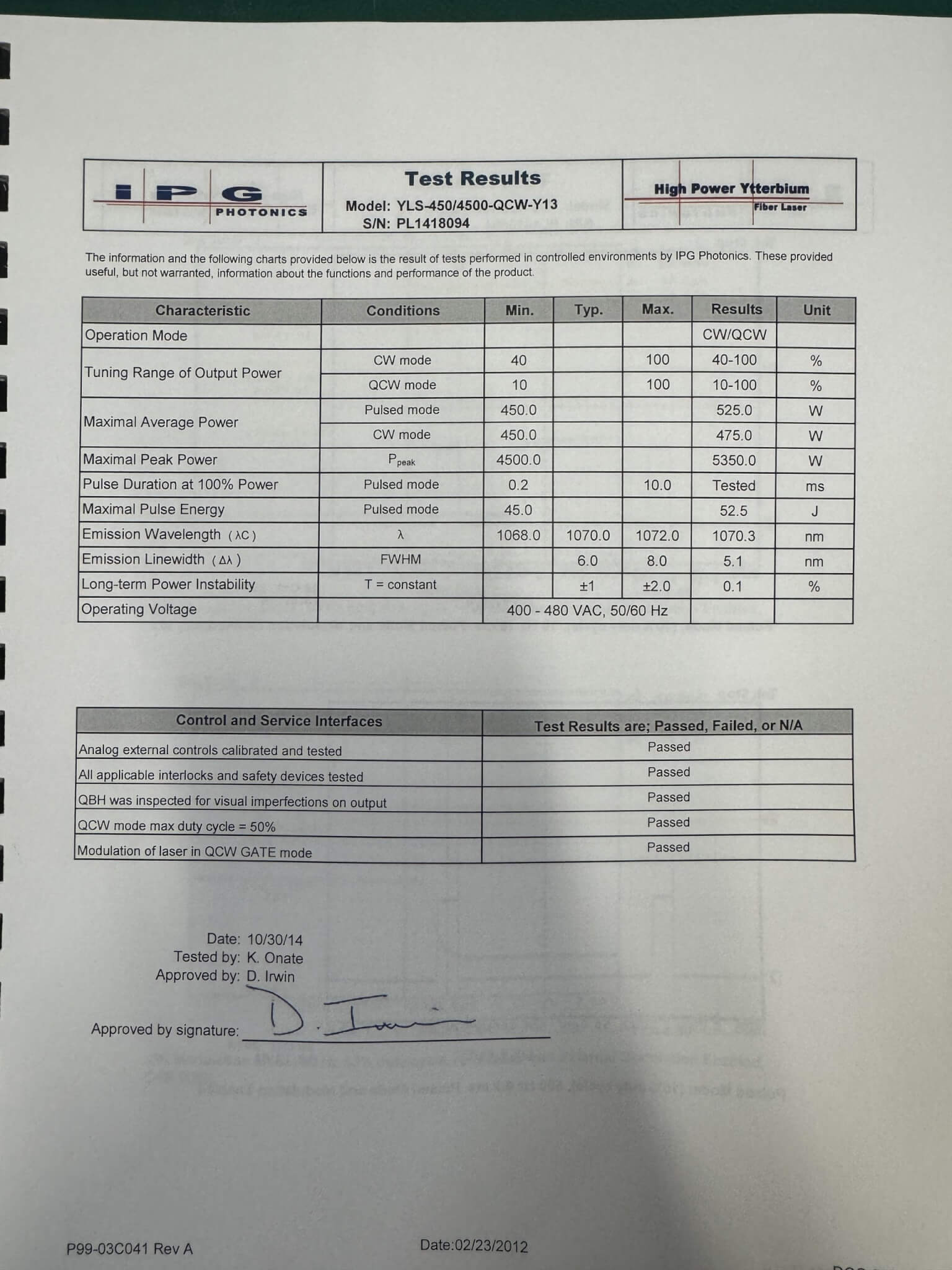

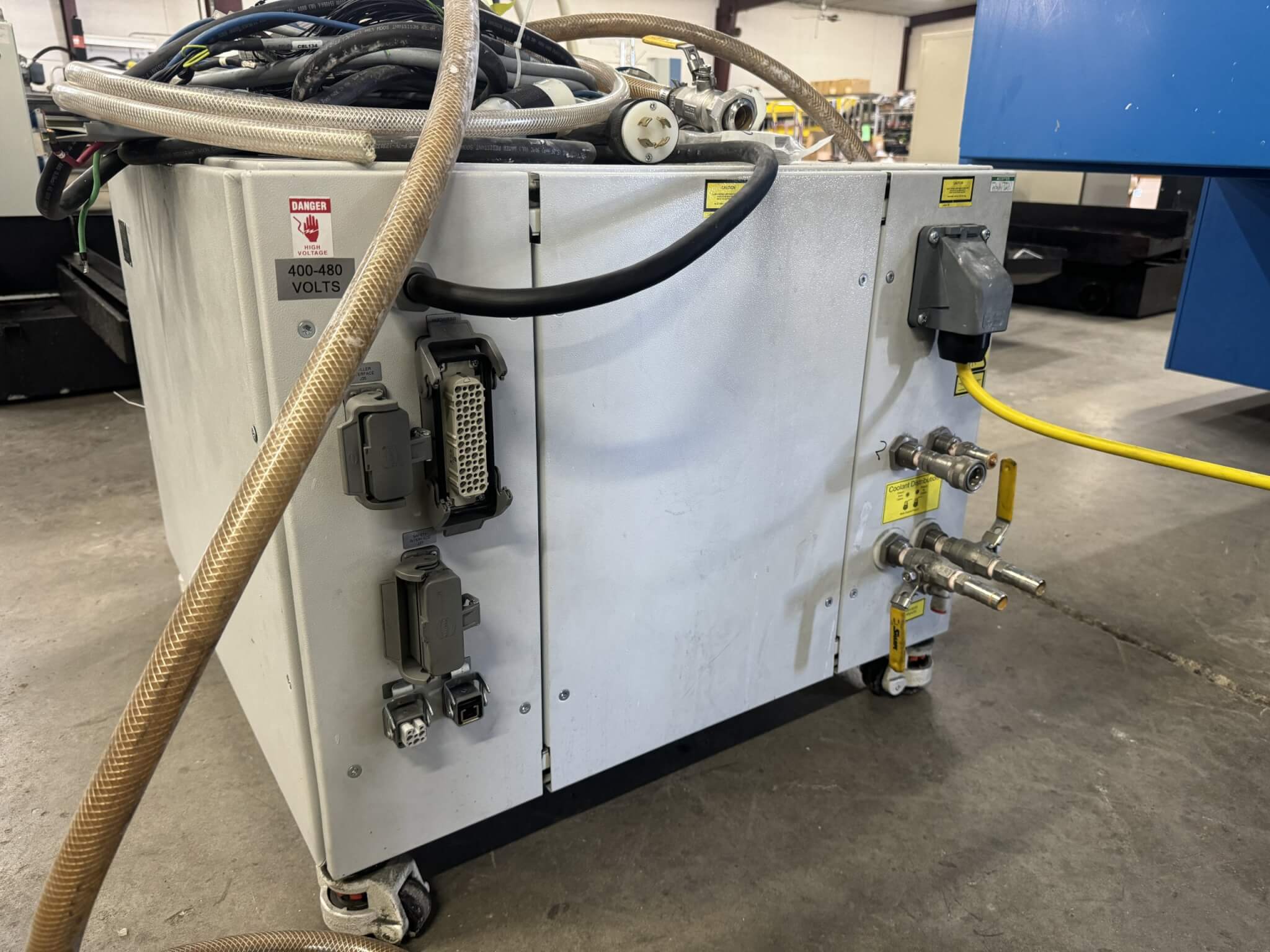

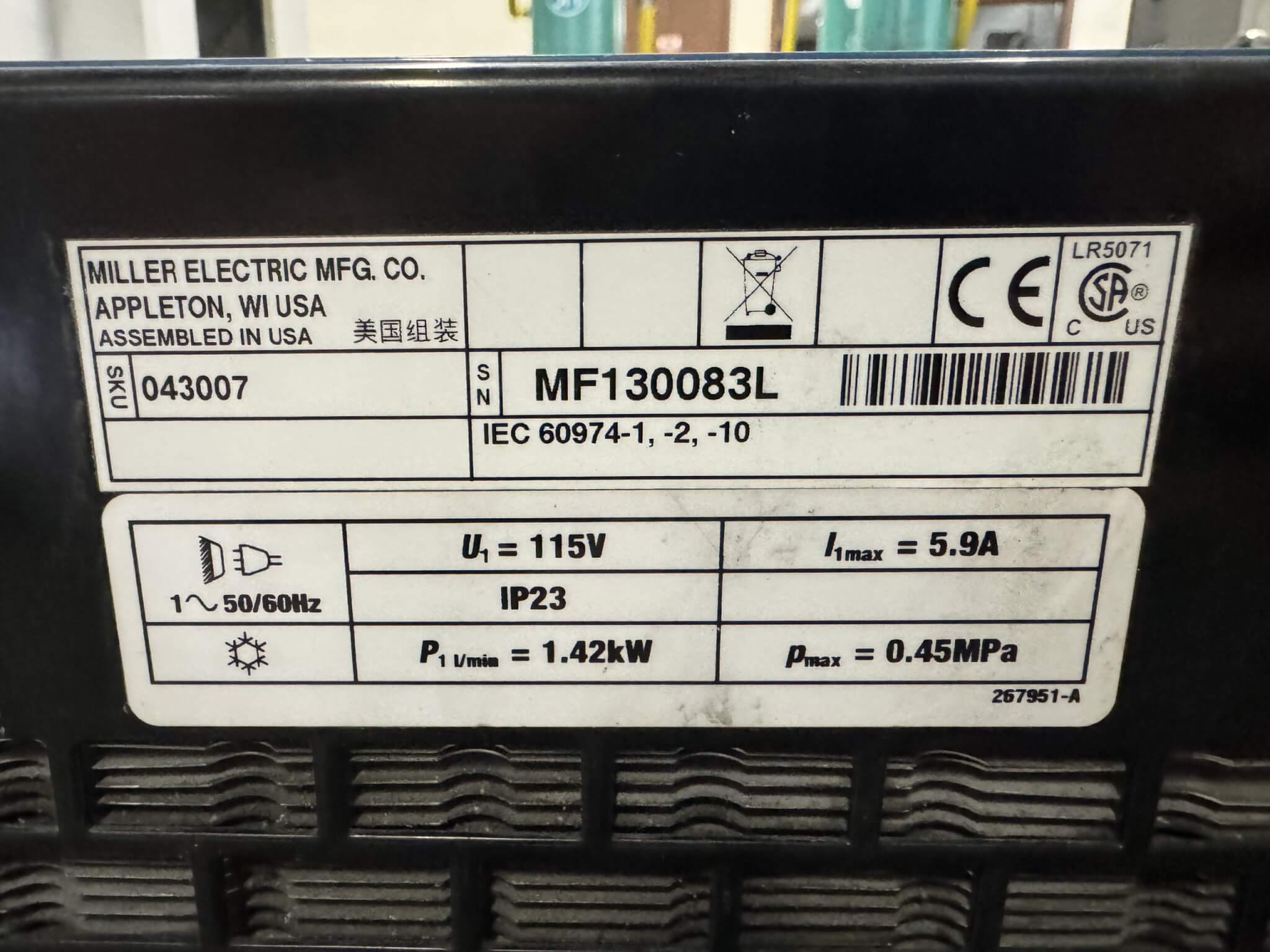

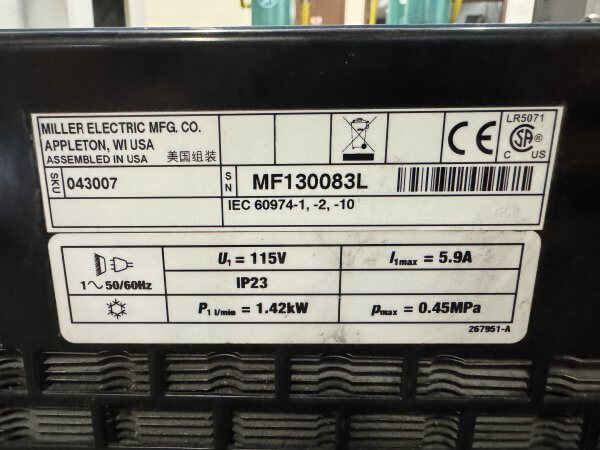

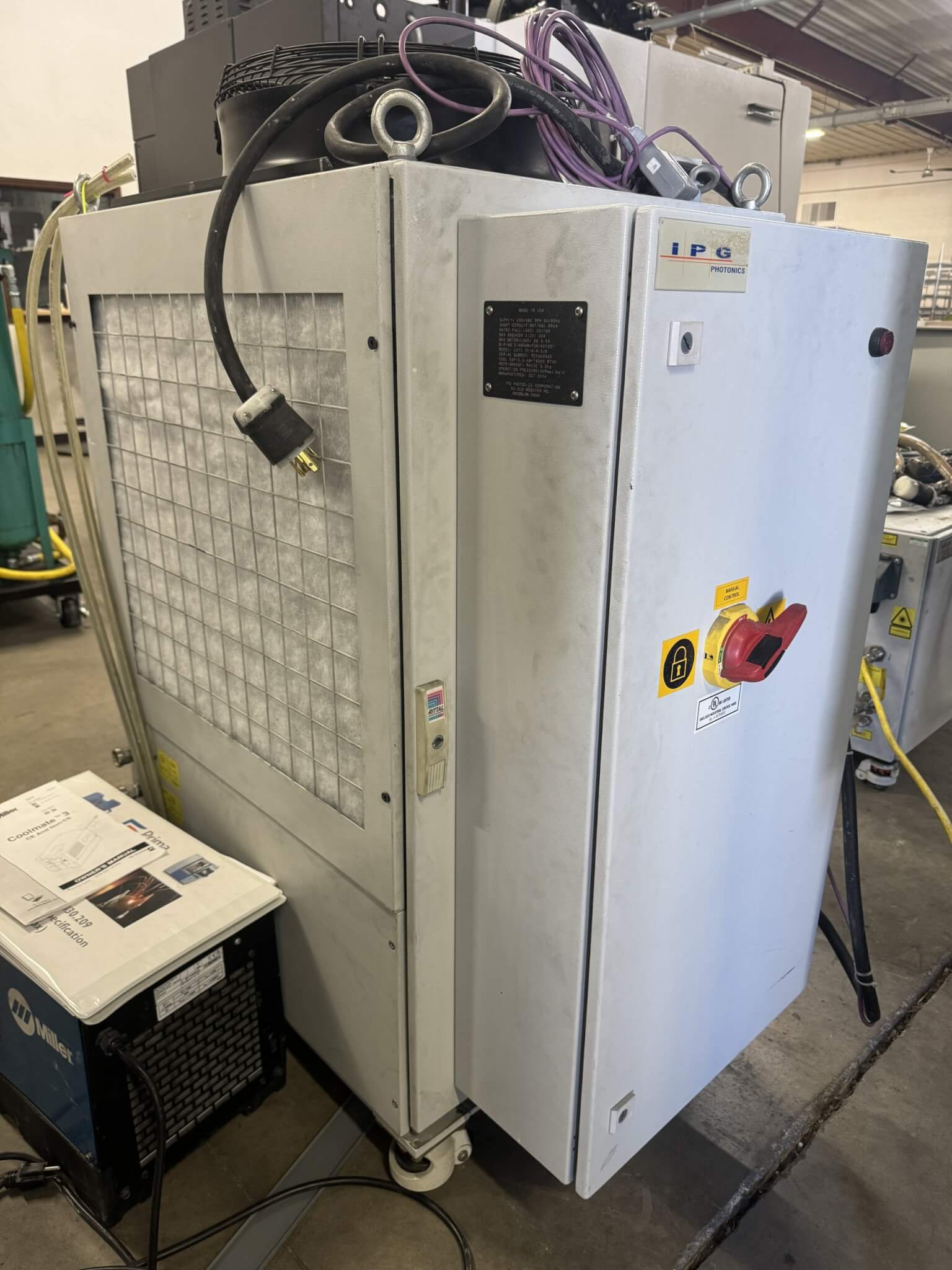

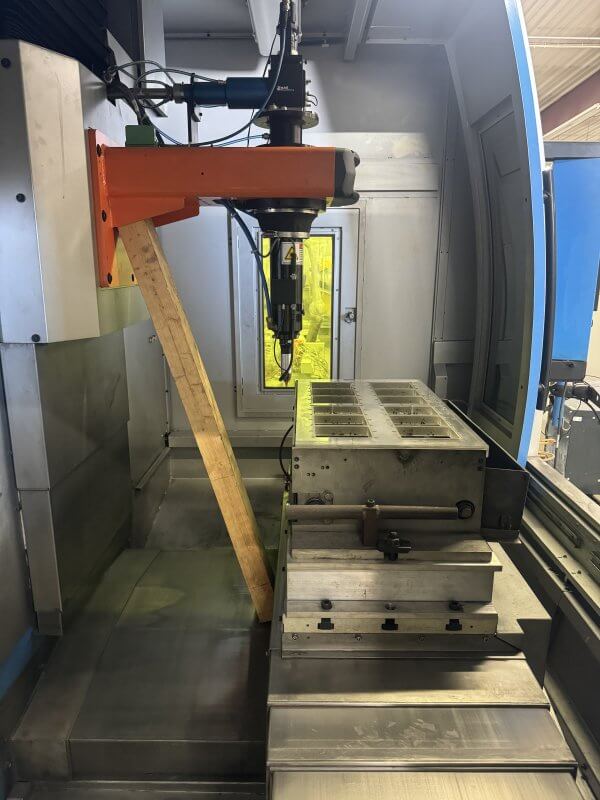

Laserdyne 430 is a flexible 3D laser system for a wide range of high precision welding, drilling and cutting applications. Laserdyne System 94P CNC Control, IPG Photonics YLS-450/4500 Laser, Automatic Focus Control, Surface Mapping, Miller Optical Laser Chiller.
| Manufacturer | Prima Industries |
| Model | Laserdyne430 |
| Condition | Used |
| Year | 2014 |

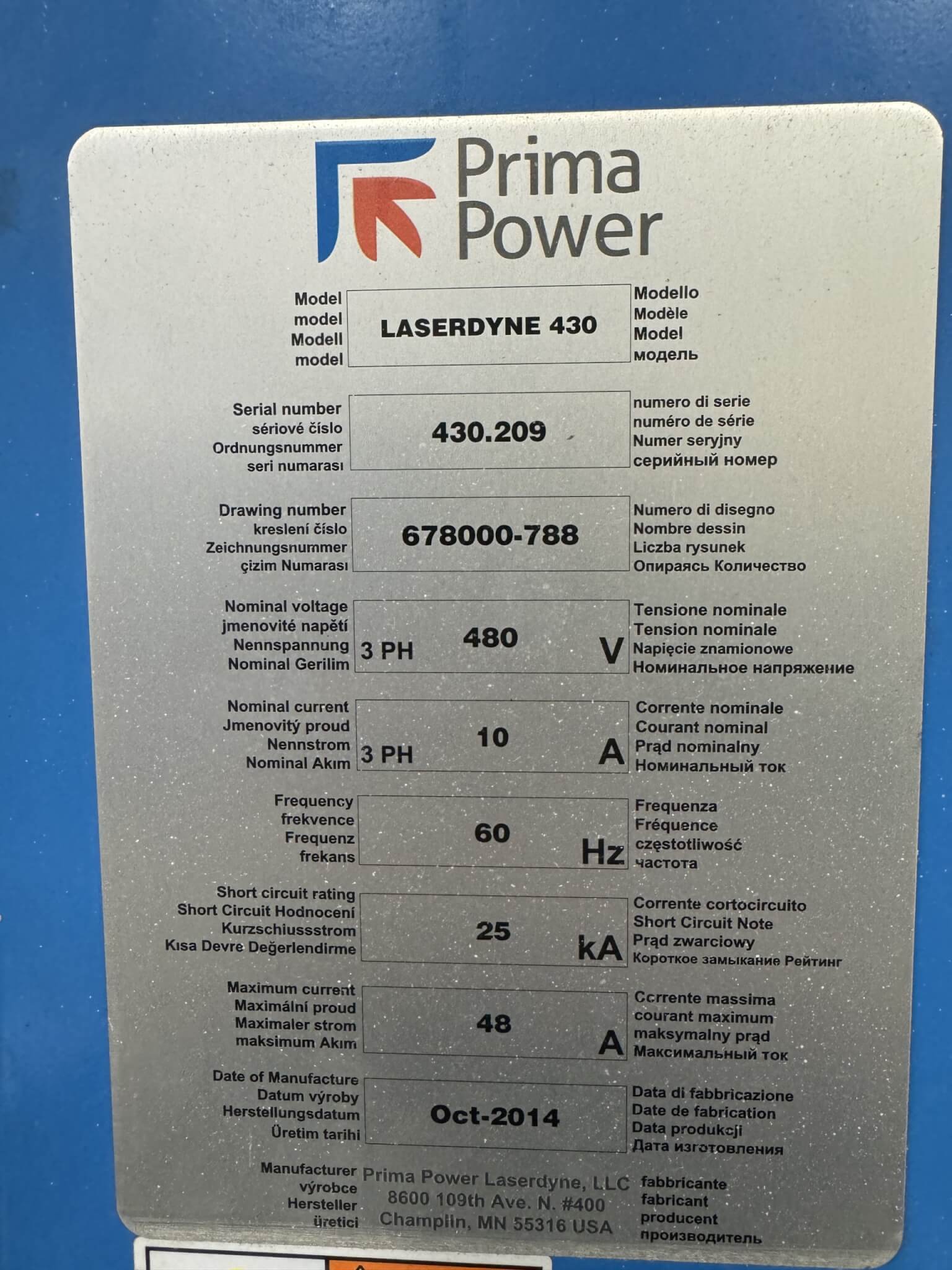

| Serial number | 430.209 |
| Stock number | 33849 |
| Laser capacity | 450 Watt Continuous/ 4,500 Watt Peak |

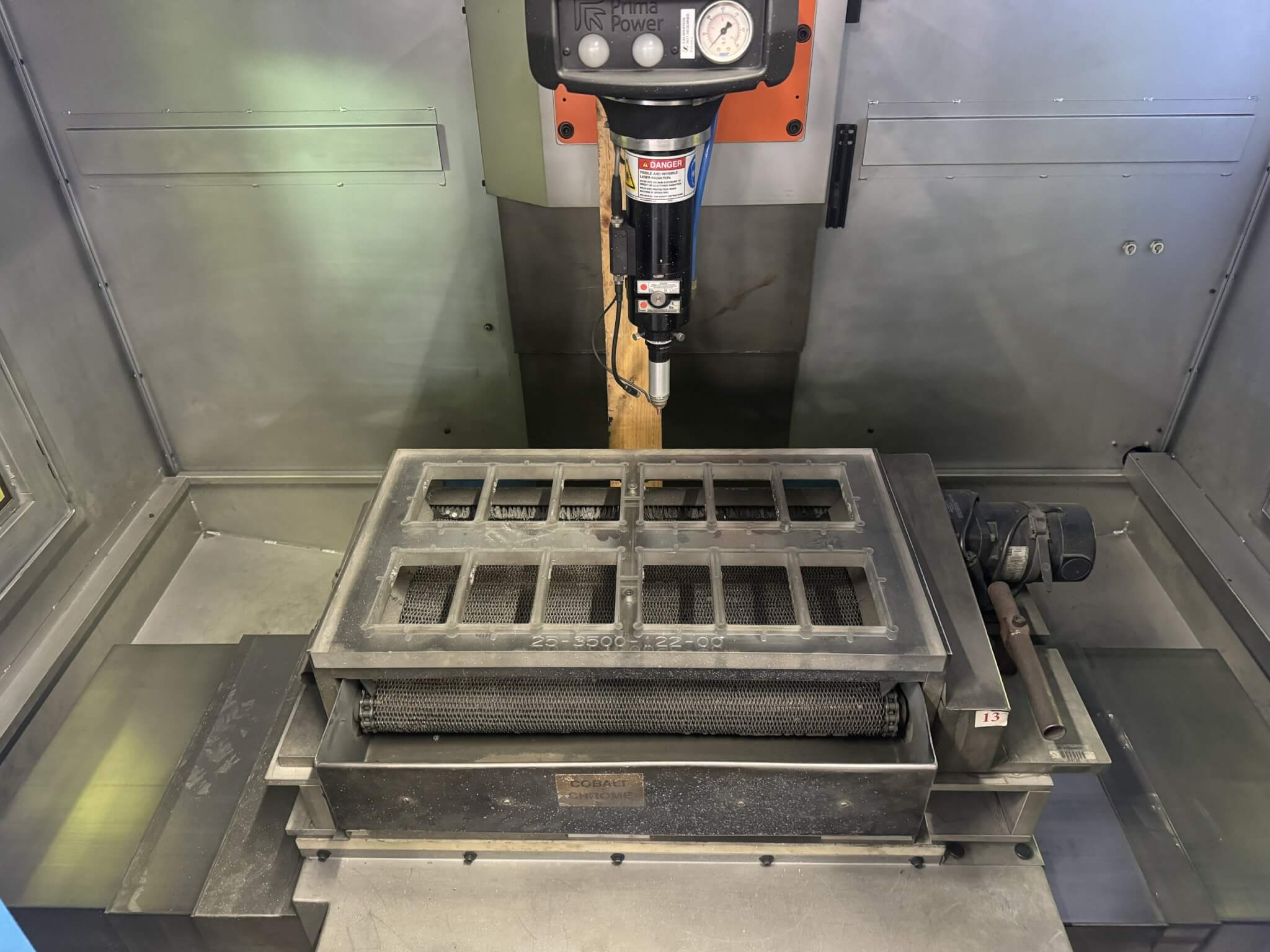

| Table size | 16.5″ x 31.5″ |
| Table load capacity | 550 Lbs |
| X-axis (table left to right travel) | 23″ |
| Y-axis (optical head front to back travel) | 16″ |
| Z-axis (optical head front to back travel) | 20″ |
| D-axis (beam director) | 300 Degrees Continuous |
| C-axis (beam director) | 900 Degrees Continuous |
| Beam director rotation speed | 0-90 RPM |
| Accuracy x,y & z axes | 12.5 µm |
| Approximate machine dimensions | 84″ x 100″ |
| Approximate machine height | 115″ |
| Approximate machine weight | 13,000 Lbs |
| Category | Laser Cutters in USA |
| Subcategory | Machine tools |
| Listing ID | 102248614 |
