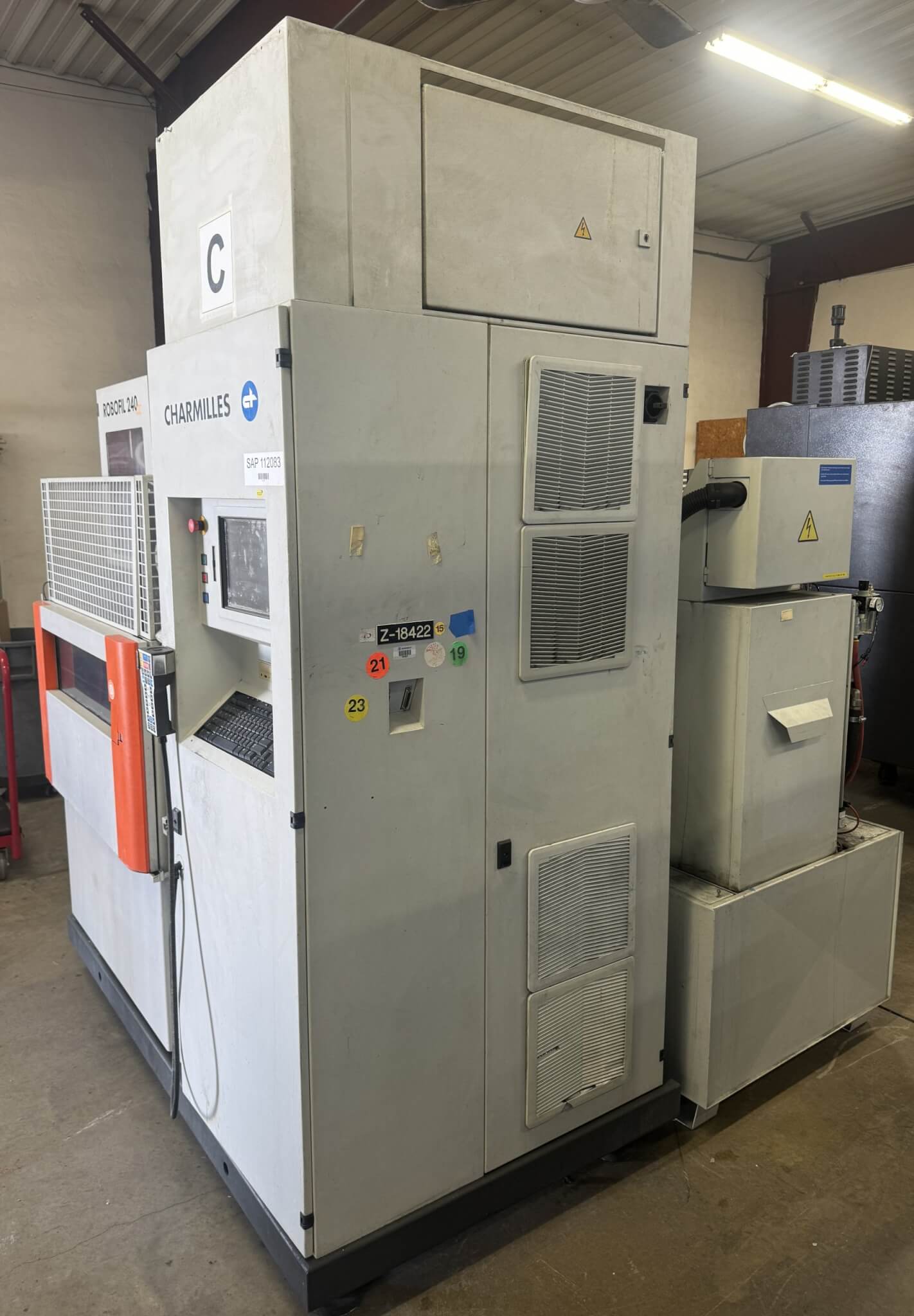

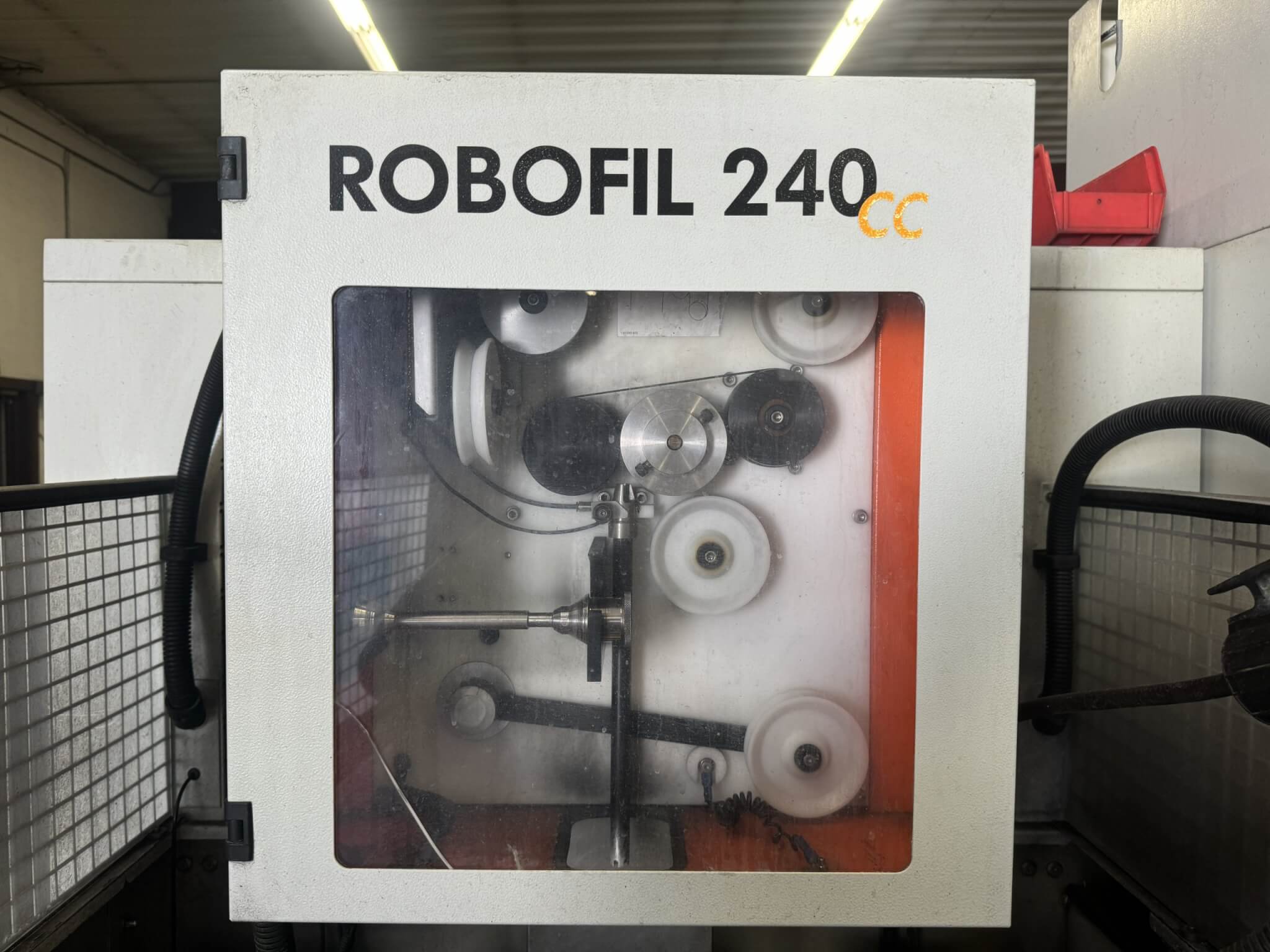

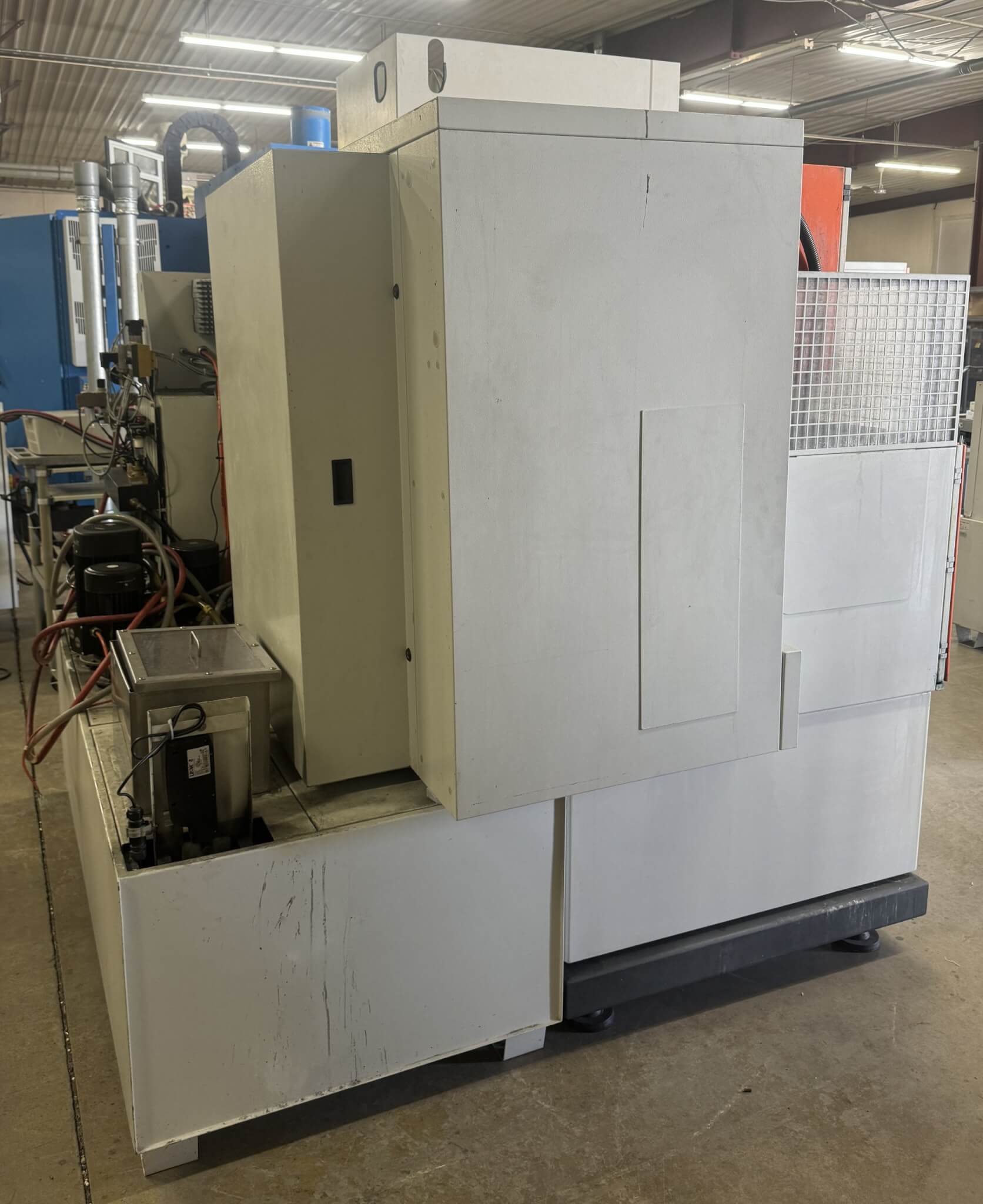

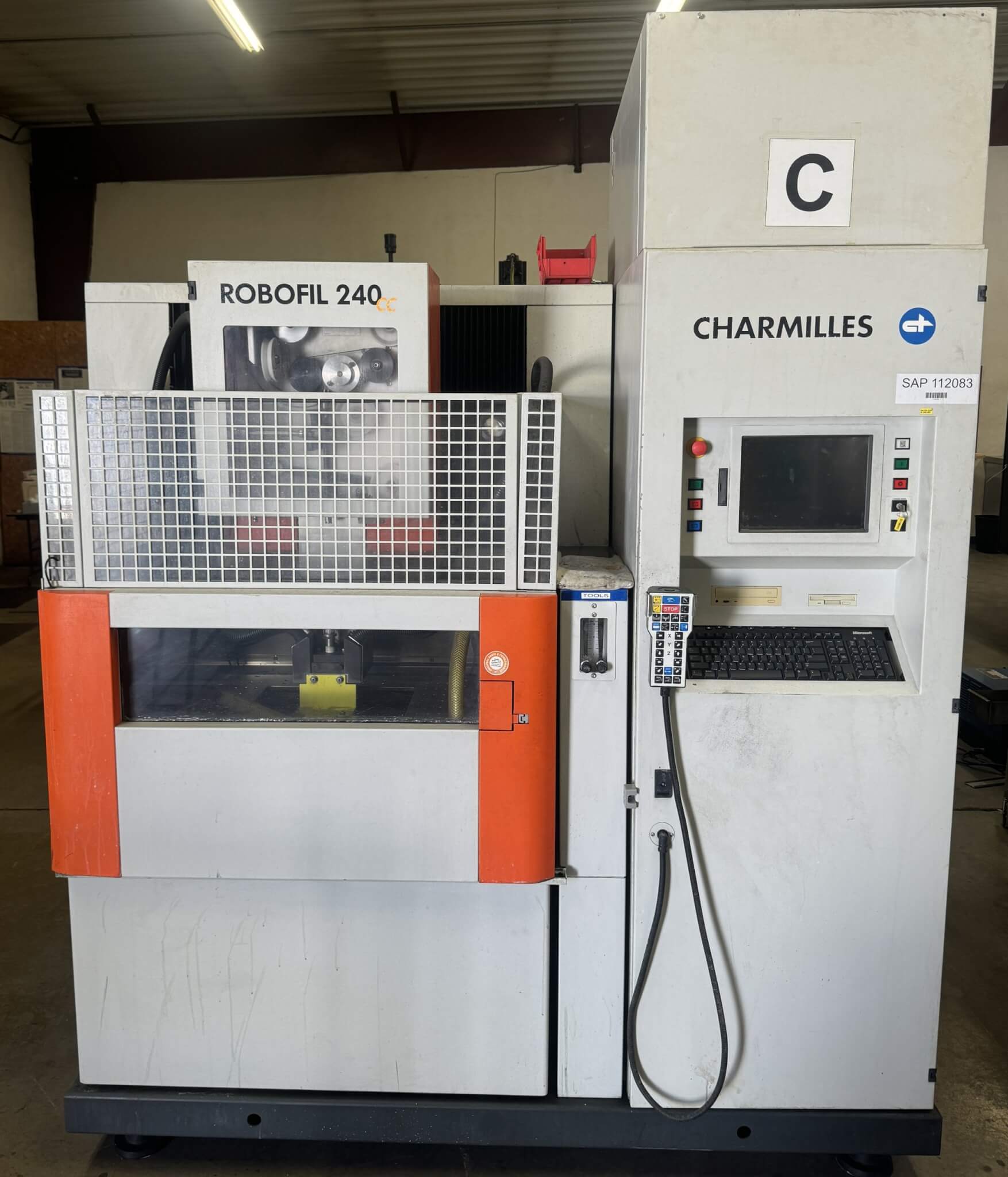

2004 Charmilles Robofil 240CC

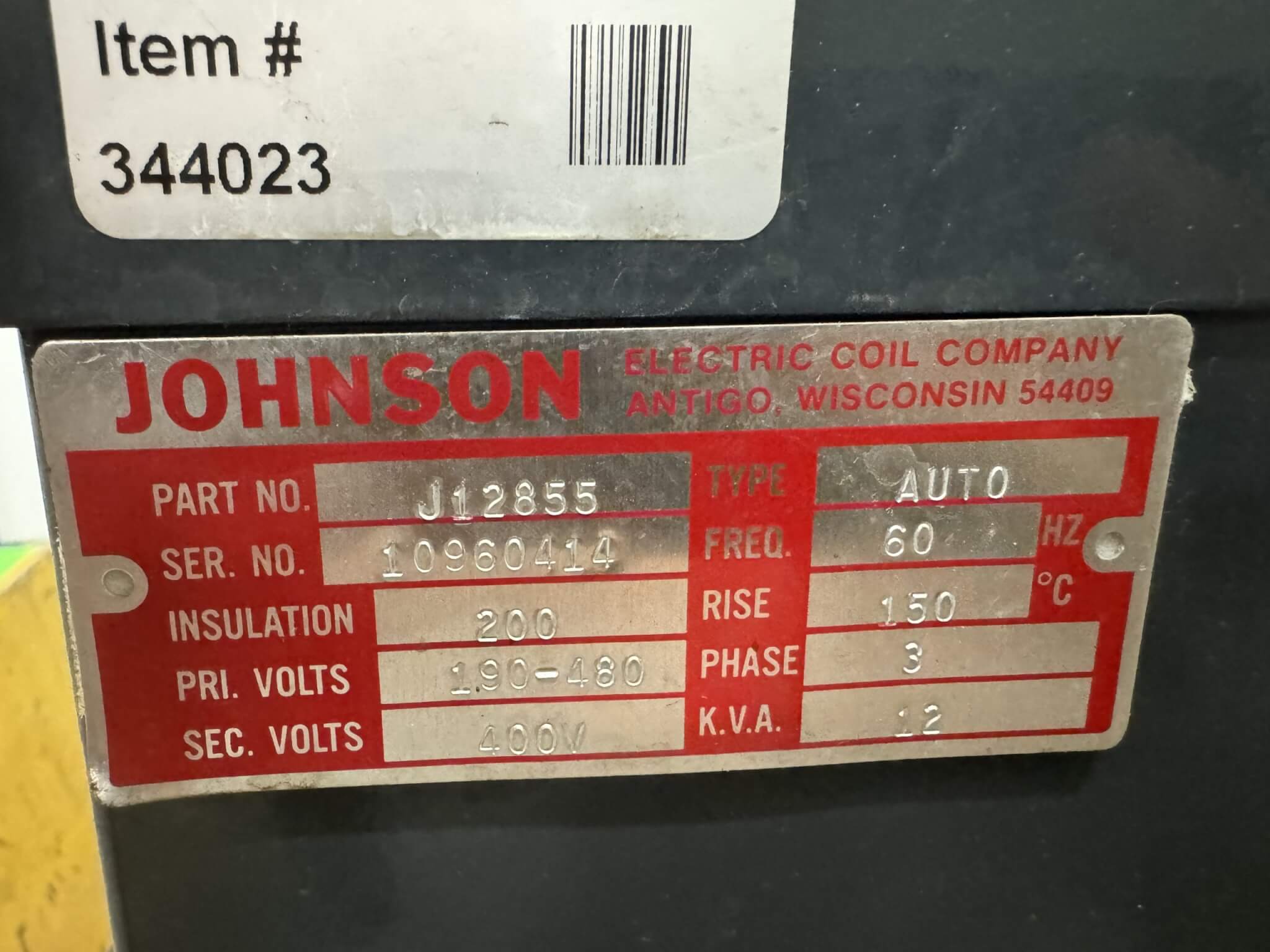

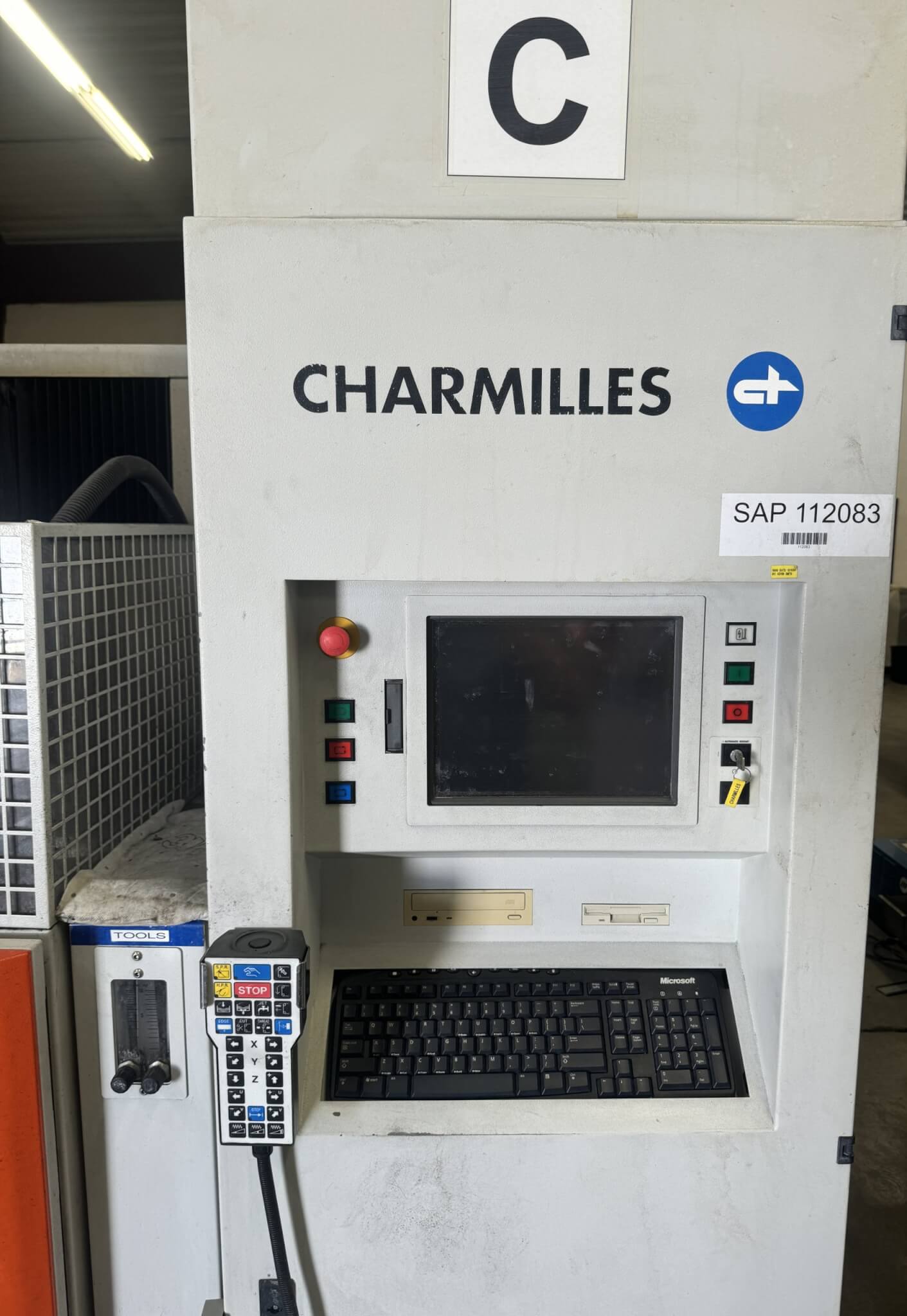

13.77″ x 8.66″ x 8.66″ Traveling CNC Submerged Wire EDM with CT Millenium Charmilles Controller, Glass Scale Feedback on all Axis, 30 Degree Tapering Capabilities, Fully Submerged Machining Capability, and Transformer.
| Manufacturer | Agie – Charmilles |
| Model | Robofil |
| Type | Wire EDM |
| Condition | Used |
| Year | 2004 |
| Serial number | 921256 |
| Stock number | 18831 |
| Max workplace dimensions | 39.37″ x 21.65″ x 8.66″ |

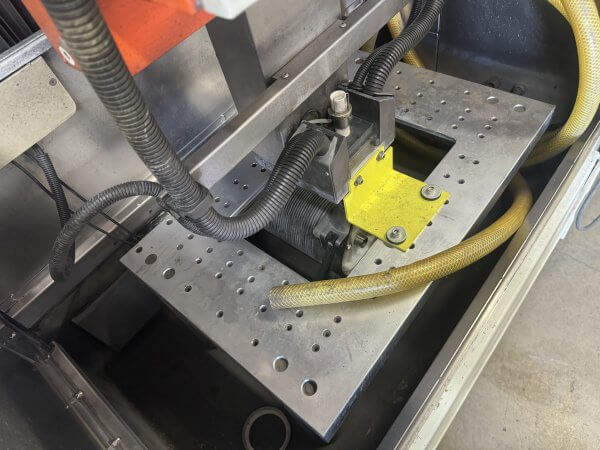

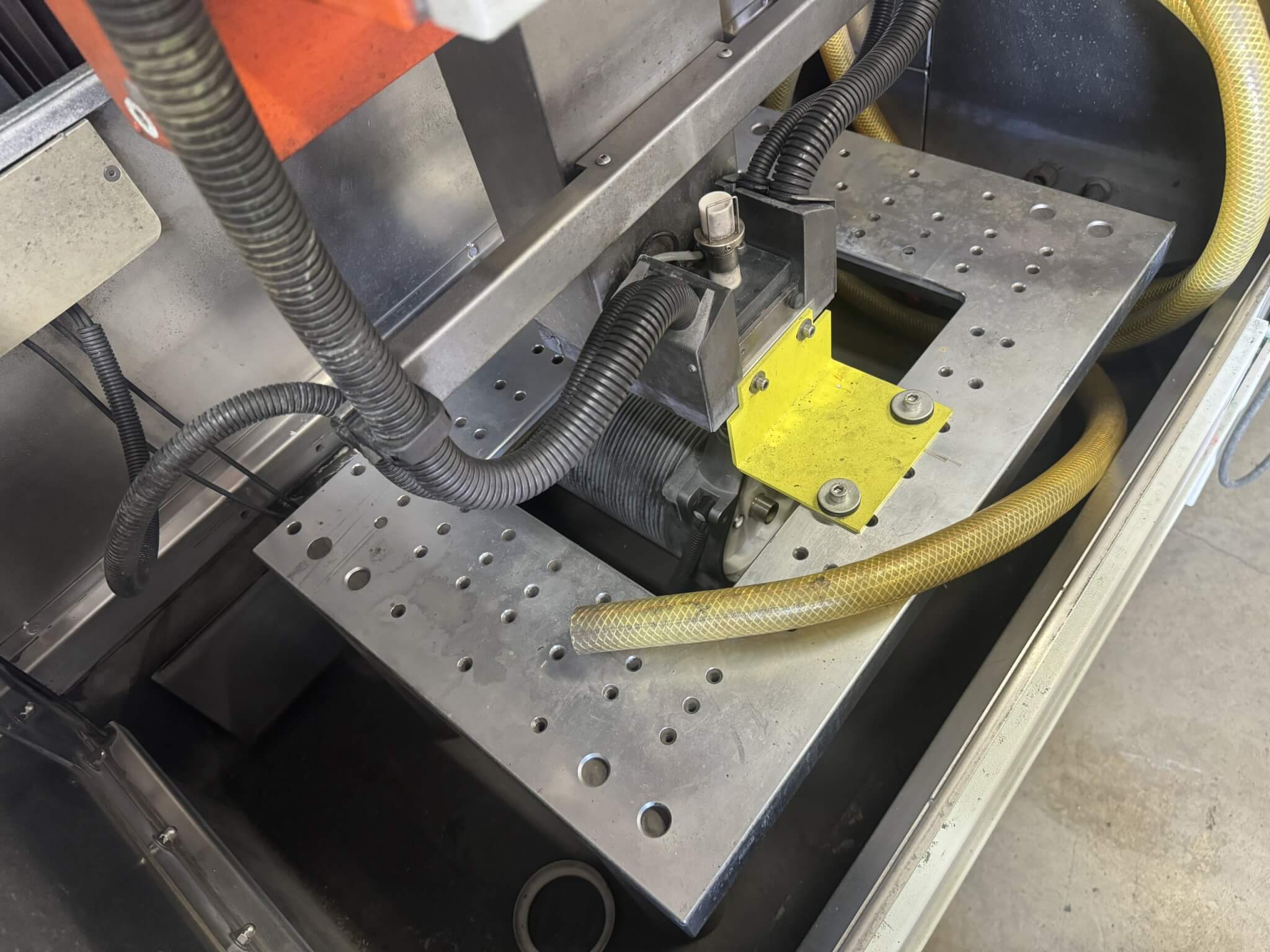

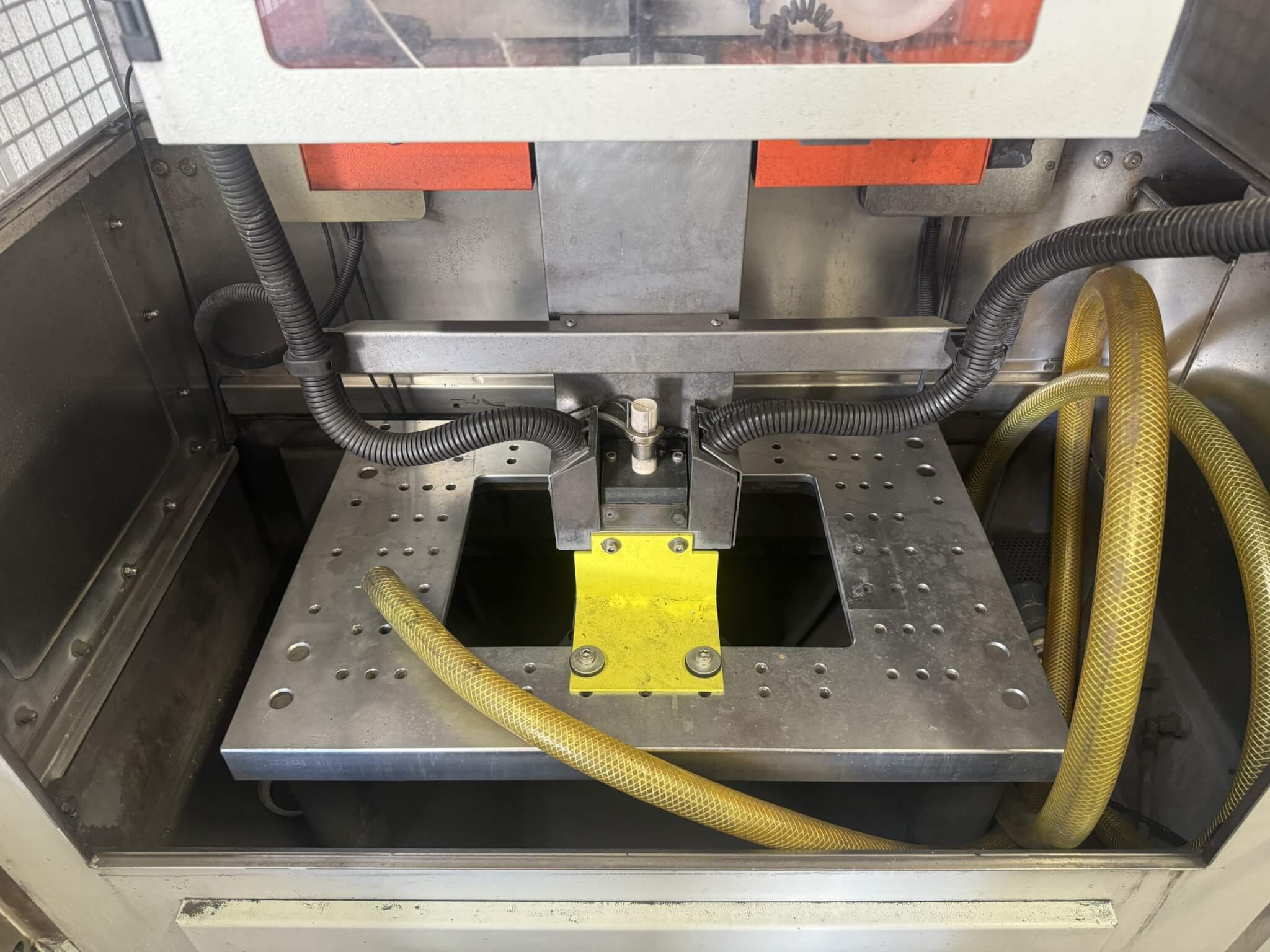

| Table size | 26.77″ x 17.72″ |
| Floor to table | 39.37″ |
| Front door dimensions | 32.28″ |
| Max workpiece weight | 1,653 LBS |
| Machining travels (x, y, z) | 13.77″ x 8.66″ x 8.66″ |
| Travels (u & v) | 13.33″ x 8.66″ |
| Wire diameter capability | .004″ – .012″ |
| Taper capacity standard | 0 – 30 Degrees |
| Max. taper deg/inch | +/-45 @ 8.66 |

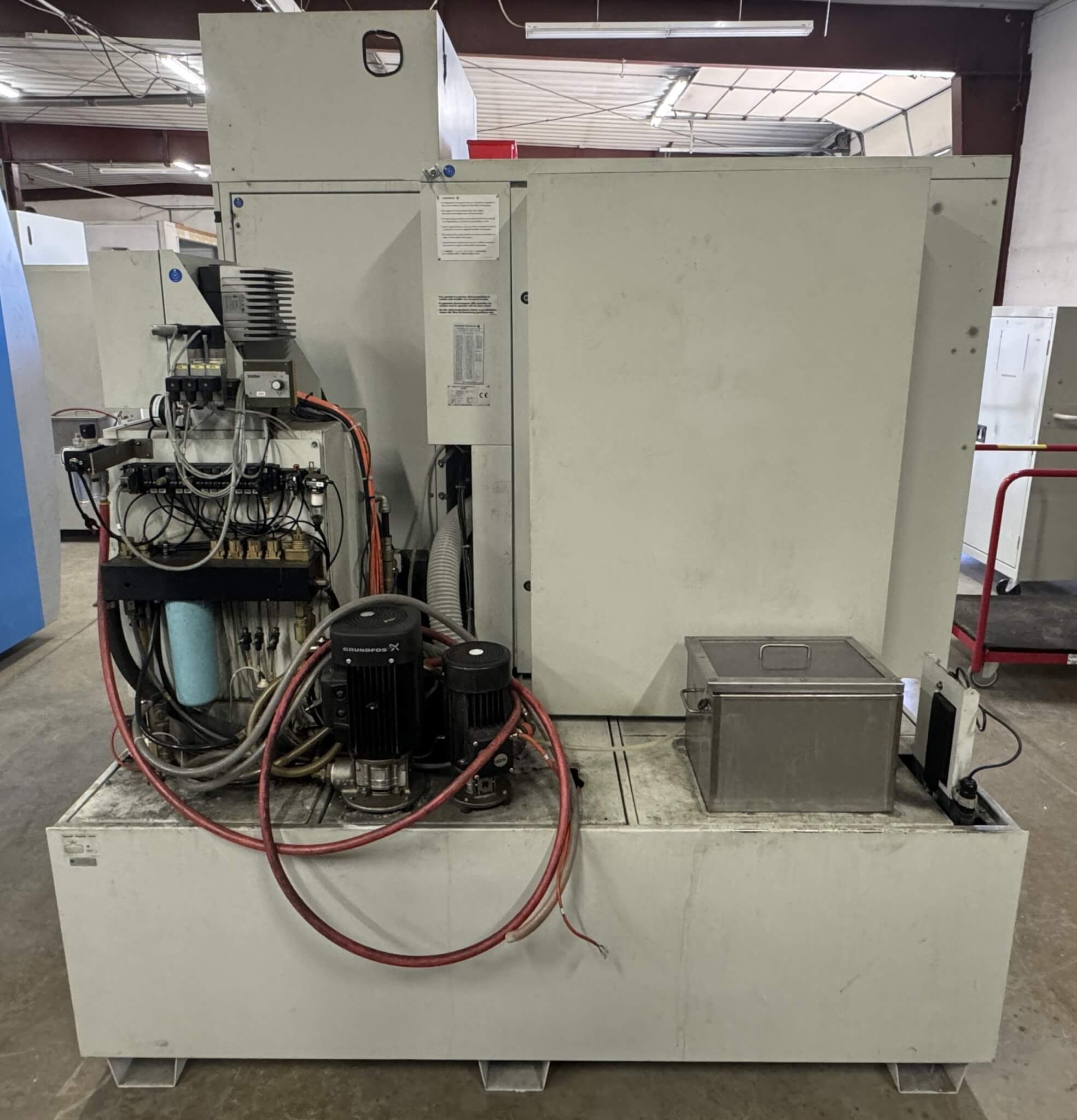

| Dielectric capacity | 201 GAL |
| Approximate machine weight (dry) | 5,200 LBS |
| Approximate machine dimensions | 80″ x 81″ x 96″ H |
| Category | EDM machines in USA |
| Subcategory | Machine tools |
| Listing ID | 102091000 |
